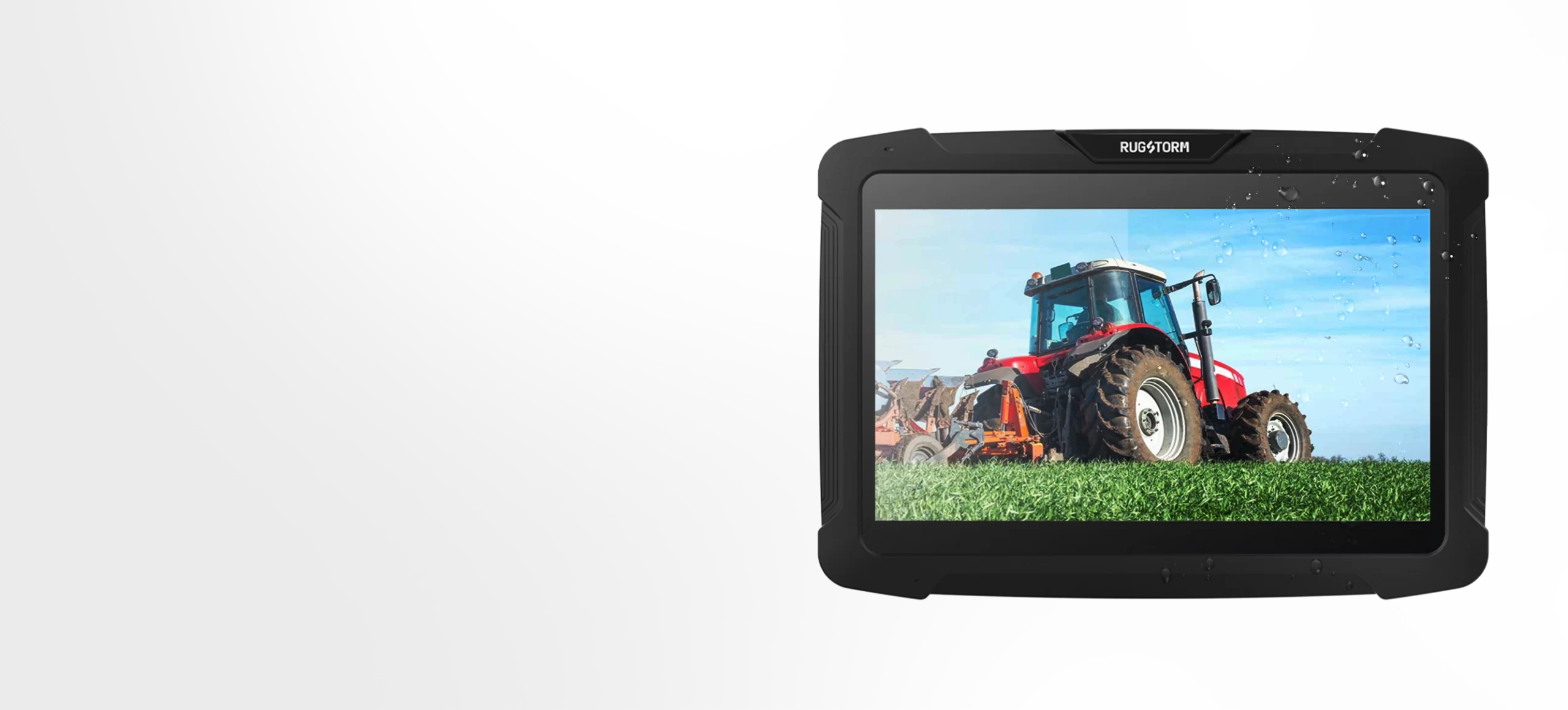

Built to withstand tough conditions, the Rugstorm VD100 delivers reliable performance and exceptional visibility. Its IP65-rated protection against water and dust, combined with a brilliant 750-nit display, ensures you can work effectively no matter the weather.
The Rugstorm VD100 is designed to meet the evolving demands of modern mobile operations. Equipped with Wi-Fi, Bluetooth, and 4G LTE, its dual-band auto-switching feature boosts signal stability by 40%, ensuring reliable real-time communication for logistics dispatch and remote inspections.

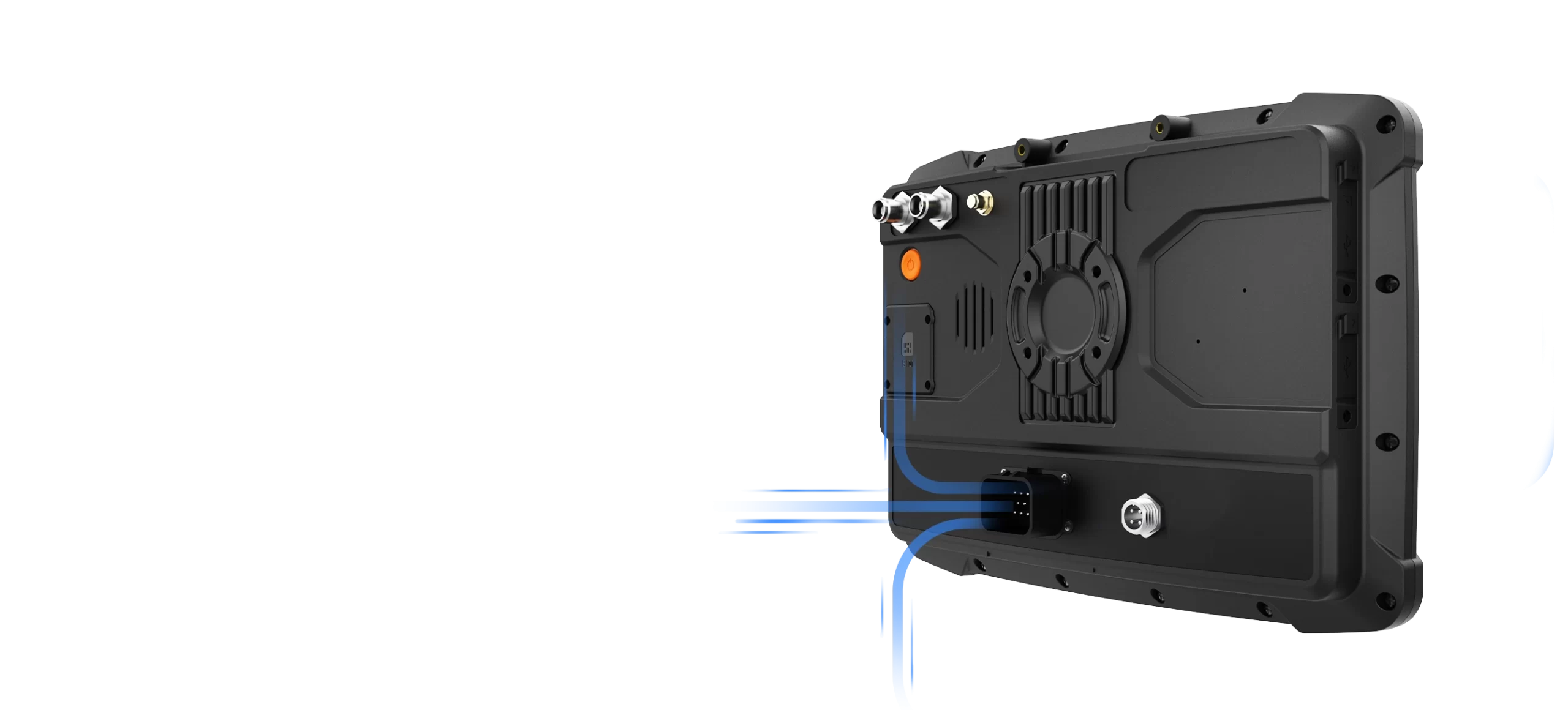

The Rugstorm VD100 is designed for seamless vehicle integration, it comes equipped with a CAN Bus and an automotive-grade (9–36V) power supply. This means you can directly read data from various vehicles without needing to install extra sensors or wiring.
The Rugstorm VD100 features an industrial-grade GNSS module that supports multiple positioning systems, including GPS, Galileo, BeiDou, and GLONASS,. With ANSI/ASAE EP455 certifications, the VD100 delivers meter level accuracy even in rough, bumpy environments.
To prevent data loss from unexpected power failures, the Rugstorm VD100 is equipped with an integrated emergency battery. This battery provides a crucial 3 seconds of power, allowing the system to perform a safe shutdown and maintain data integrity.
| 作業系統 | |
| • Android 10.0 | |
| 處理器 | |
| • AllWINNER T507，ARM Cortex-A53, Quad-core 1.5GHz | |
| 記憶體與儲存 | |
| • 2 GB | |
| • 16 GB | |
| 顯示器 | |
| • 10.1″ 1024 x 600 resolution | |
| • Support wet & glove modes with capacitive 10-point touch | |
| • 600 nits typical | |
| • Direct bonding | |
| 音訊 | |
| • 105db speaker (10 cm, 1 kHz) | |
| 介面 | |
| • 1 x USB2.0 Type-A | |
| • 1 x Micro USB 2.0 Device | |
| • 1 x Ethernet M12 8 pins aviation plug | |
| • 1 x Micro SDXC (Max: 128GB) slot | |
| • 1 x Standard SIM Card slot | |
| • 1 x Pin Port 14 pin | |
| • Buttons 1 x Power | |
| Dimensions & Weight | |
| • 269mm L x 190mm W x 41mm D/10.6″ L x 7.5″ W x 1.6″ D | |
| • 1kg/2.2lbs | |
| 電源 | |
| Operate Voltage 7~36V | |
| 無線連接 | |
| • Wi-Fi (WLAN) – IEEE 802.11 b/g/n 2.4GHz |
|
| • Cellular (WWAN) – 4G LTE Global version (optional) |
|
| • BT – v4.0 |
|
| 環境與耐用性 | |
| • Operating temperature – -25°C to 70°C/-13°F to 158°F |
|
| • Storage temperature – -30°C to 80°C/-22°F to 176°F |
|
| • Humidity – 0% to 95% non-condensing |
|
| • Sealing – IP65 |
|
| • MIL-STD-810G | |
| • Support ISO16750 | |
| 認證 | |
| • CE RED, RoHS, REACH | |
| • WEEE | |
