The compact fanless industrial PC BC100-J6413 Seriers is built for space-limited industrial edge scenarios, adopting low-power Celeron processor, dual display output, rich serial and Gigabit Ethernet ports, mini PCIe expandable slot and wide voltage power design. It supports wall/DIN rail mounting and wide temperature operation, delivering stable performance for lightweight industrial control tasks.
Box PC
OS: Windows 10 / Ubuntu
CPU: Intel Celeron J6413, 1.8GHz, 4 cores/4 threads, 1.5MB L2 cache, 10W TDP
BIOS: AMI UEFI BIOS
Memory: 4GB, 1 × SO-DIMM DDR4-3200MHz
Storage: 128GB, 1 × M.2 2242 M-Key SSD
Watch Dog: Programmable watchdog timer (adjustable level 1 to 255)
I/O Interfaces:
– LAN: 3 × Intel i210-AT Gigabit Ethernet ports
– USB: 3 × USB3.1
– COM: 1 × RS232, 1 × RS485
– Display: DP + HDMI dual display
– LED: 1 user-defined indicator LED
– Expansion: 1 full-size mini PCIe slot with SIM card slot (for Wi-Fi/4G expansion)
OS: Windows 10 / Ubuntu
CPU: Intel Celeron J6413, 1.8GHz, 4 cores/4 threads, 1.5MB L2 cache, 10W TDP
BIOS: AMI UEFI BIOS
Memory: 4GB, 1 × SO-DIMM DDR4-3200MHz
Storage: 128GB, 1 × M.2 2242 M-Key SSD
Watch Dog: Programmable watchdog timer (adjustable level 1 to 255)
I/O Interfaces:
– LAN: 3 × Intel i210-AT Gigabit Ethernet ports
– USB: 3 × USB3.1
– COM: 1 × RS232, 1 × RS485
– Display: DP + HDMI dual display
– LED: 1 user-defined indicator LED
– Expansion: 1 full-size mini PCIe slot with SIM card slot (for Wi-Fi/4G expansion)
OS: Windows 10 / Ubuntu
CPU: Intel Celeron J6413, 1.8GHz, 4 cores/4 threads, 1.5MB L2 cache, 10W TDP
BIOS: AMI UEFI BIOS
Memory: 4GB, 1 × SO-DIMM DDR4-3200MHz
Storage: 128GB, 1 × M.2 2242 M-Key SSD
Watch Dog: Programmable watchdog timer (adjustable level 1 to 255)
I/O Interfaces:
– LAN: 2 × RTL8111H Gigabit LAN + 3 × Intel i210-AT Gigabit LAN (3 ports expandable)
– USB: 3 × USB3.1
– COM: 1 × RS232, 1 × RS485
– Display: DP + HDMI dual display
– LED: 1 user-defined indicator LED
– Expansion: 1 full-size mini PCIe slot with SIM card slot (for Wi-Fi/4G expansion)
OS: Windows 10 / Ubuntu
CPU: Intel Celeron J6413, 1.8GHz, 4 cores/4 threads, 1.5MB L2 cache, 10W TDP
BIOS: AMI UEFI BIOS
Memory: 4GB, 1 × SO-DIMM DDR4-3200MHz
Storage: 128GB, 1 × M.2 2242 M-Key SSD
Watch Dog: Programmable watchdog timer (adjustable level 1 to 255)
I/O Interfaces:
– LAN: 4 standard Gigabit Ethernet ports + 1 optional expandable network port
– USB: 4×USB3.0 + 1 internal USB2.0 Type-A for hardware encryption dongles
– COM: 2 RS232/485 serial ports, max baud rate 115.2kbps with auto flow control
– IO: 16 isolated DI (NPN/PNP) + 16 isolated DO (NPN/PNP)
– Display: VGA + HDMI dual display output
– Expansion: 2 full-size mini PCIe slots (1 slot with SIM card for Wi-Fi/3G/4G expansion)
– Extra: 1 remote switch

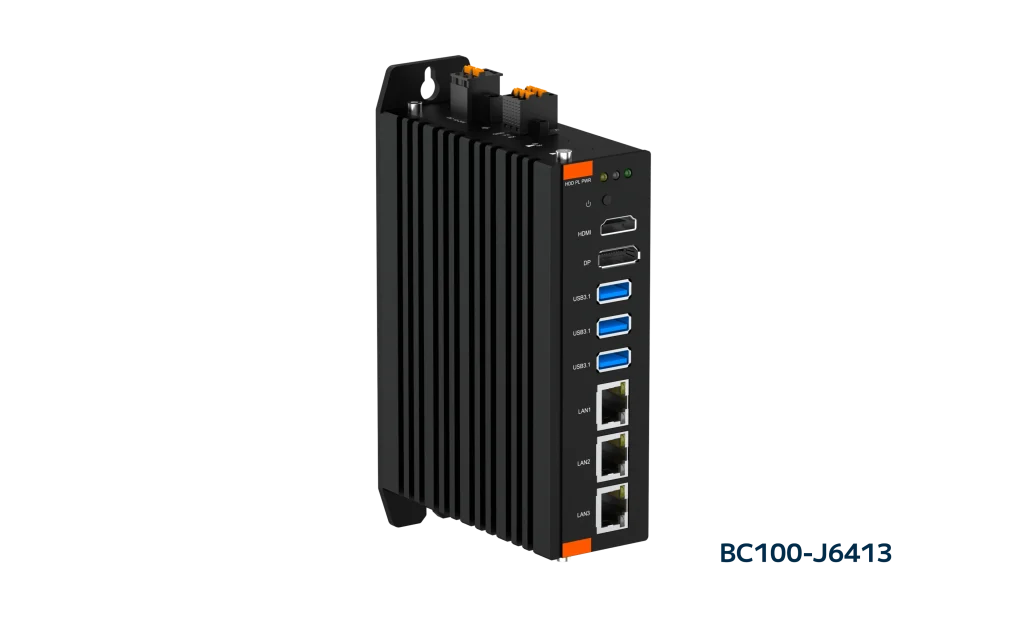

| Model | BC100-J6413 | |
| System | CPU | Intel® Celeron J6413, 1.8GHz, 4 cores / 4 threads, 1.5MB L2 cache |
| TDP | 10W | |
| BIOS | AMI UEFI BIOS | |
| Memory | 4GB,1 x SO-DIMM DDR4-3200MHz | |
| Storage | 128GB,1 x M.2 SSD 2242 M-Key | |
| Watch Dog | Programmable settings from level 1 to 255 | |
| I/O | USB | 3 x USB3.1 |
| COM | 1 x RS232(COM1), 1 x RS485(COM2) | |
| RJ45 | 3 x Intel i210-AT GbE LAN | |
| DP | 1 x DP, Max 4096 x 2160 at 60Hz | |
| HDMI | 1 x HDMI, Max 3840 x 2160 at 30Hz | |
| LED | 1 x user-defined LED | |
| Expansion | 1 x Full-size mini PCIe card slot with SIM card slot | |
| OS | Microsoft Windows | Windows 10 |
| Linux | Ubuntu | |
| Power | Voltage Input | DC 12~24V±10%,overcurrent,overvoltage protection & reverse connection prevention function |
| Power Consumption | Max. 60W | |
| Certification | EMC | CE/FCC Class B |
| Physical | Dimension | (L)138mm x (W)102mm x (H)48mm |
| Net Weight | 1.06Kg | |
| Environment | Operating Temp | -20°C ~ 60°C (-4°F ~ 140°F) use SSD |
| Storage Temp | -40ºC ~ 80ºC (-40℉ ~ 176℉) use SSD | |
| Humidity | 5~95%(no condensation) | |
| Vibration | SSD applied: 5-500Hz, 1.5 Grms, IEC 60068-2-64 | |
| Impact | SSD applied: 20G, 11ms duration, Half-sine wave, IEC60068-2-27 | |

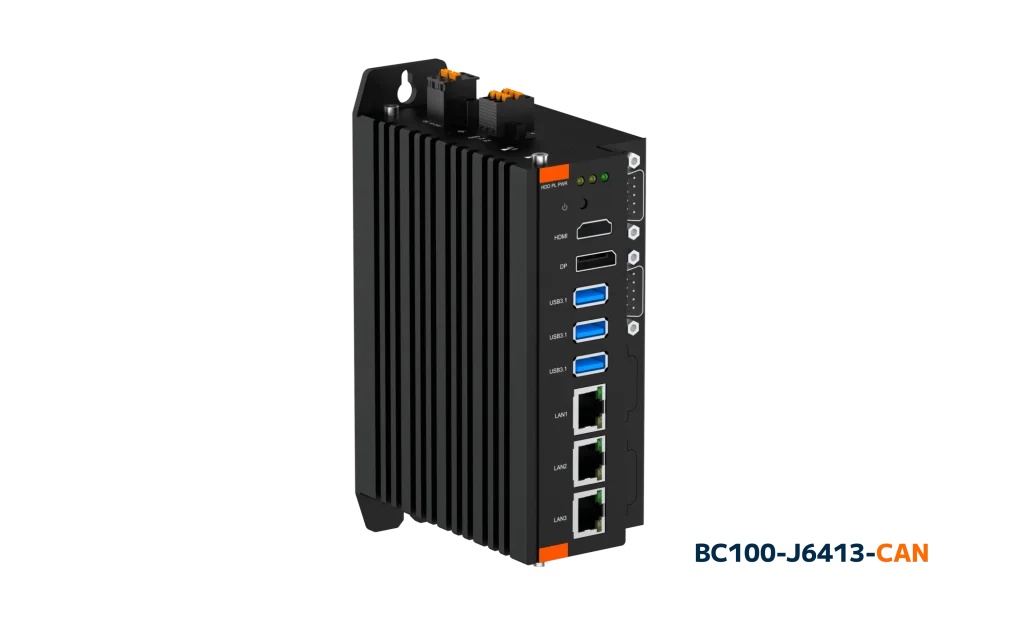

| Model | BC100-J6413-CAN | |
| System | CPU | Intel® Celeron J6413, 1.8GHz, 4 cores / 4 threads, 1.5MB L2 cache |
| TDP | 10W | |
| BIOS | AMI UEFI BIOS | |
| Memory | 4GB,1 x SO-DIMM DDR4-3200MHz | |
| Storage | 128GB,1 x M.2 SSD 2242 M-Key | |
| Watch Dog | Programmable settings from level 1 to 255 | |
| I/O | USB | 3 x USB3.1 |
| COM | 1 x RS232(COM1), 1 x RS485(COM2) | |
| RJ45 | 3 x Intel i210-AT GbE LAN | |
| DP | 1 x DP, Max 4096 x 2160 at 60Hz | |
| HDMI | 1 x HDMI, Max 3840 x 2160 at 30Hz | |
| CAN | 2 x CAN2.0 A/B(5Kbit/s~1Mbit/s, expansion by mini PCIe) | |
| LED | 1 x user-defined LED | |
| Expansion | 1 x Full-size mini PCIe card slot with SIM card slot | |
| OS | Microsoft Windows | Windows 10 |
| Linux | Ubuntu | |
| Power | Voltage Input | DC 12~24V±10%,overcurrent,overvoltage protection & reverse connection prevention function |
| Power Consumption | Max. 60W | |
| Certification | EMC | CE/FCC Class B |
| Physical | Dimension | (L)138mm x (W)102mm x (H)67.5mm |
| Net Weight | 1.06Kg | |
| Environment | Operating Temp | -20°C ~ 60°C (-4°F ~ 140°F) use SSD |
| Storage Temp | -40ºC ~ 80ºC (-40℉ ~ 176℉) | |
| Humidity | 5~95%(no condensation) | |
| Vibration | SSD applied: 5-500Hz, 1.5 Grms, IEC 60068-2-64 | |
| Impact | SSD applied: 20G, 11ms duration, Half-sine wave, IEC60068-2-27 | |

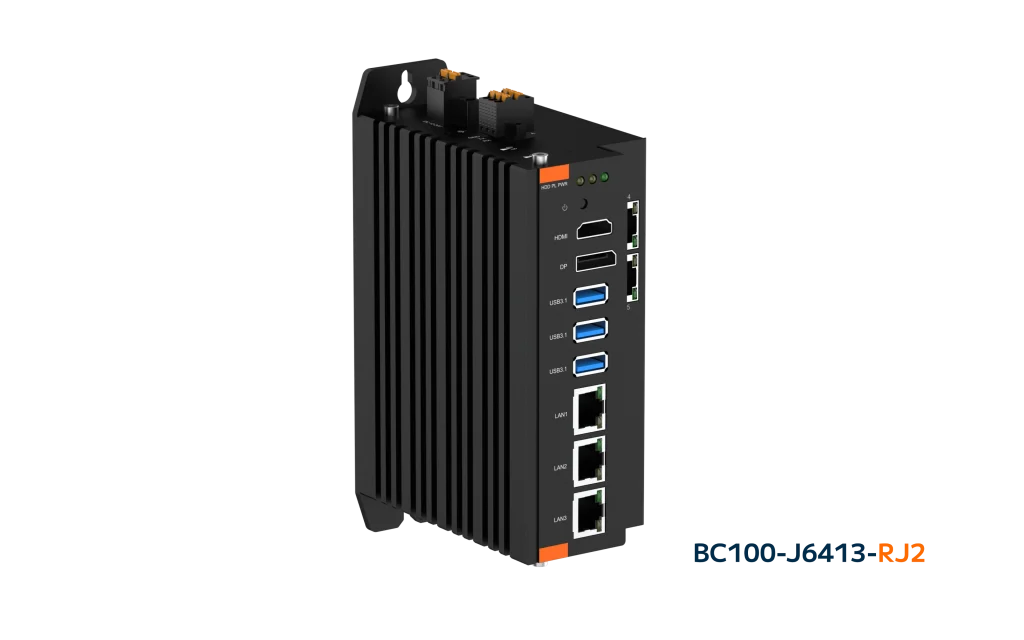

| Model | BC100-J6413-RJ2 | |
| System | CPU | Intel® Celeron J6413, 1.8GHz, 4 cores / 4 threads, 1.5MB L2 cache |
| TDP | 10W | |
| BIOS | AMI UEFI BIOS | |
| Memory メモリ | 4GB,1 x SO-DIMM DDR4-3200MHz | |
| Storage ストレージ | 128GB,1 x M.2 SSD 2242 M-Key | |
| Watch Dog | Programmable settings from level 1 to 255 | |
| I/O | USB | 3 x USB3.1 |
| COM | 1 x RS232(COM1), 1 x RS485(COM2) | |
| RJ45 | 3 x Intel i210-AT GbE LAN(LAN3/LAN4/LAN5, LAN4/LAN5, Expansion by mini PCIe) | |
| 2 x RTL8111H Gigabit network port(LAN1/LAN2) | ||
| DP | 1 x DP, Max 4096 x 2160 at 60Hz | |
| HDMI | 1 x HDMI, Max 3840 x 2160 at 30Hz | |
| LED | 1 x user-defined LED | |
| Expansion | 1 x Full-size mini PCIe card slot with SIM card slot | |
| OS | Microsoft Windows | Windows 10 |
| Linux | Ubuntu | |
| Power | Voltage Input | DC 12~24V±10%,overcurrent,overvoltage protection & reverse connection prevention function |
| Power Consumption | Max. 60W | |
| Certification | EMC | CE/FCC Class B |
| Physical | Dimension | (L)138mm x (W)102mm x (H)67.5mm |
| Net Weight | 1.06Kg | |
| Environment | Operating Temp | -20°C ~ 60°C (-4°F ~ 140°F) use SSD |
| Storage Temp | -40ºC ~ 80ºC (-40℉ ~ 176℉) | |
| Humidity | 5~95%(no condensation) | |
| Vibration | SSD applied: 5-500Hz, 1.5 Grms, IEC 60068-2-64 | |
| Impact | SSD applied: 20G, 11ms duration, Half-sine wave, IEC60068-2-27 | |
| Model | BC100-J6413-232 | |
| System | CPU | Intel® Celeron J6413, 1.8GHz, 4 cores / 4 threads, 1.5MB L2 cache |
| TDP | 10W | |
| BIOS | AMI UEFI BIOS | |
| Memory | 4GB,1 x SO-DIMM DDR4-3200MHz | |
| Storage | 128GB,1 x M.2 SSD 2242 M-Key | |
| Watch Dog | Programmable settings from level 1 to 255 | |
| I/O | USB | 3 x USB3.1 |
| COM | 1 x RS232(COM1), 1 x RS485(COM2) | |
| 2 x COM(RS232 or RS485, expansion by mini PCIe) | ||
| RJ45 | 3 x Intel i210-AT GbE LAN | |
| DP | 1 x DP, Max 4096 x 2160 at 60Hz | |
| HDMI | 1 x HDMI, Max 3840 x 2160 at 30Hz | |
| LED | 1 x user-defined LED | |
| Expansion | 1 x Full-size mini PCIe card slot with SIM card slot | |
| OS | Microsoft Windows | Windows 10 |
| Linux | Ubuntu | |
| Power | Voltage Input | DC 12~24V±10%,overcurrent,overvoltage protection & reverse connection prevention function |
| Power Consumption | Max 60W | |
| Certification | EMC | CE/FCC Class B |
| Physical | Dimension | (L)138mm x (W)102mm x (H)67.5mm |
| Net Weight | 1.15Kg | |
| Environment | Operating Temp | -20°C ~ 60°C (-4°F ~ 140°F) use SSD |
| Storage Temp | -40ºC ~ 80ºC (-40℉ ~ 176℉) | |
| Humidity | 5~95%(no condensation) | |
| Vibration | SSD applied: 5-500Hz, 1.5 Grms, IEC 60068-2-64 | |
| Impact | SSD applied: 20G, 11ms duration, Half-sine wave, IEC60068-2-27 |
