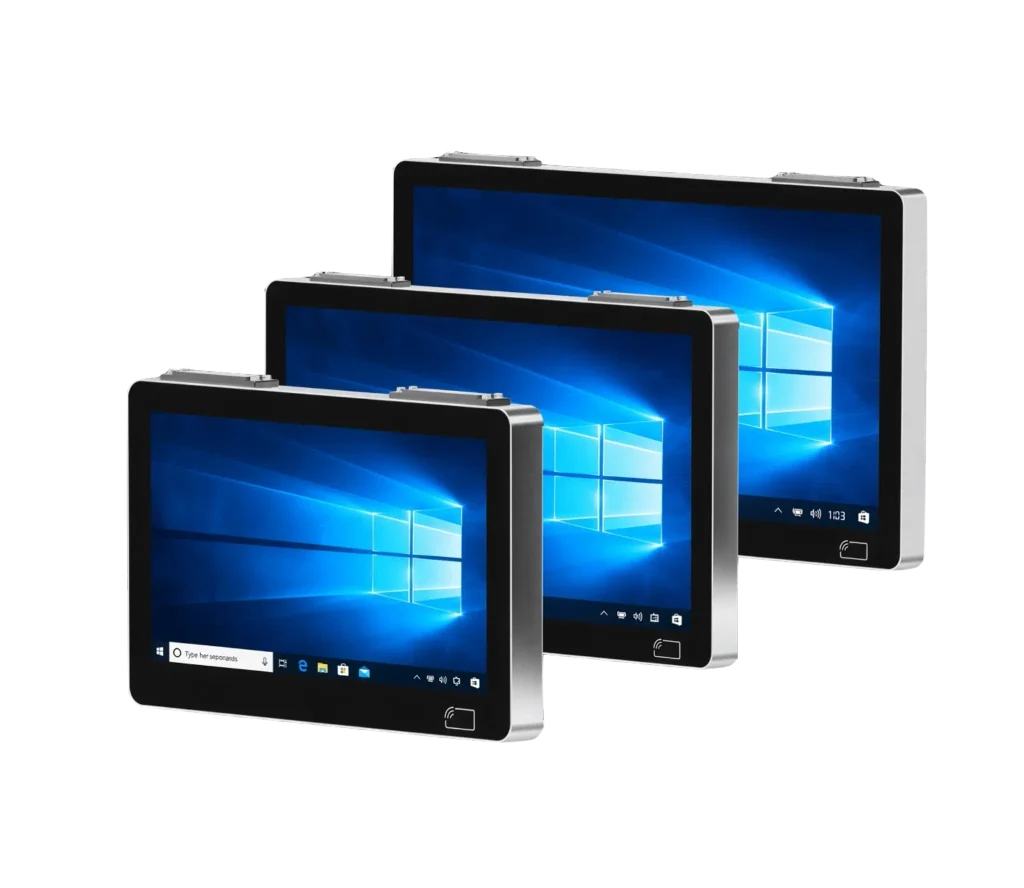

Stainless Touch Panel PC 15.6–23.8"

Product Features

IP69K

M12 Connector

Stainless Housing

Full-Glass Front

15.6–23.8″

IP69K for Wash-Down Lines

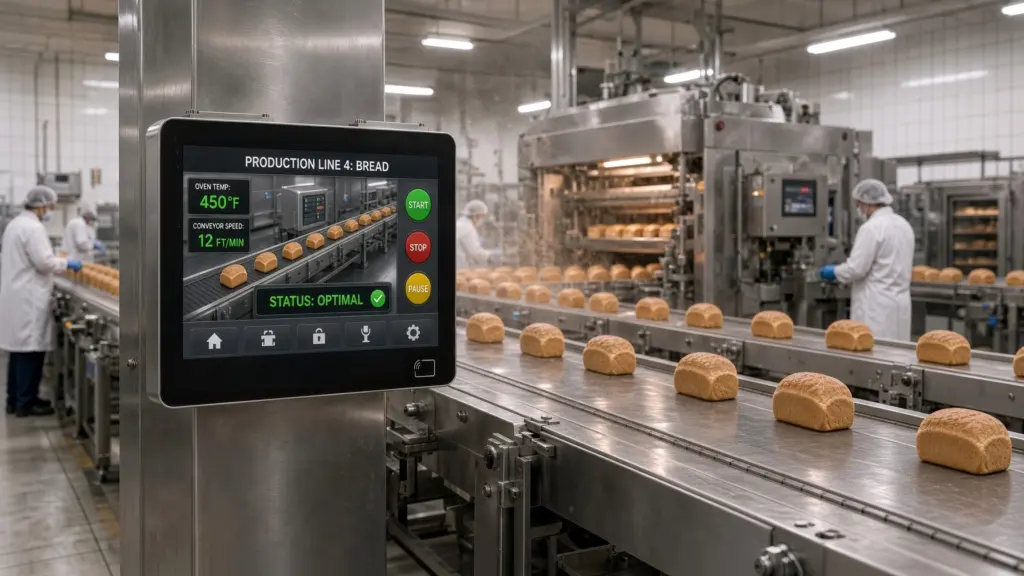

RUGSTORM Touch Panel PC – Stainless Series is specified IP69K for high-pressure, high-temperature cleaning. It is intended for food, pharmaceutical and wet process cabinets that are wiped or hosed down every shift.

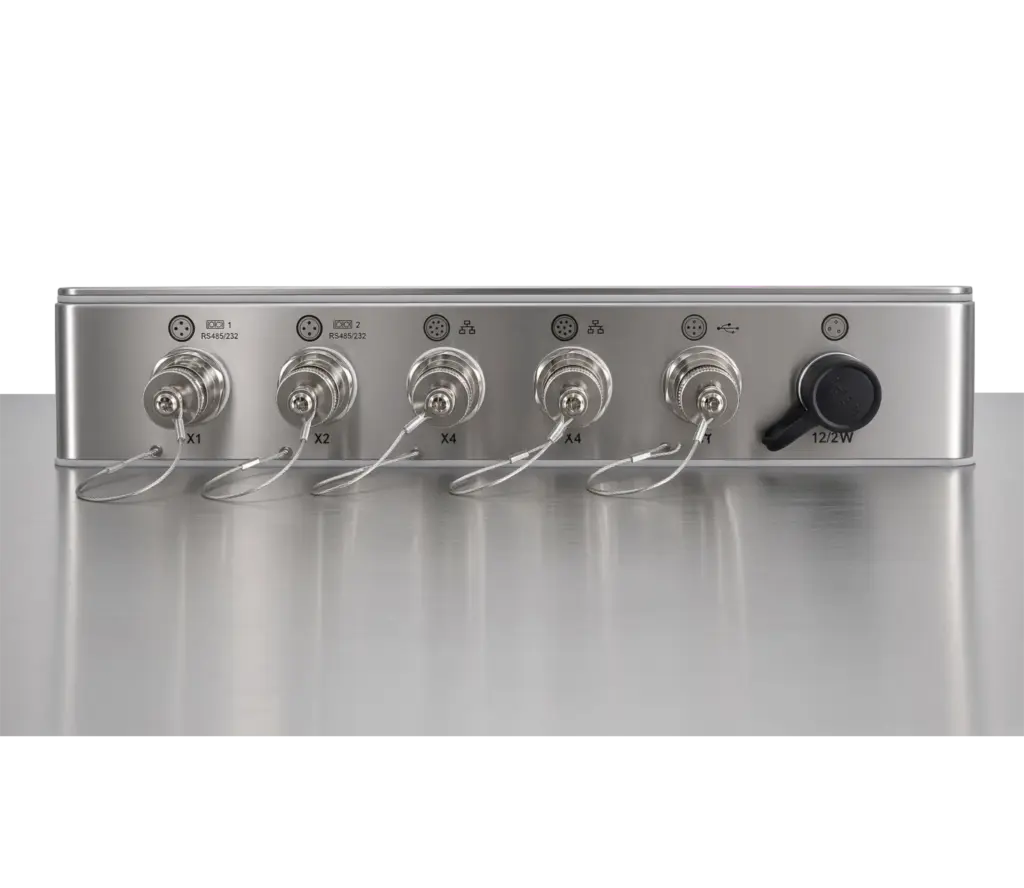

Aviation-Grade M12 Circular Connectors

I/O is brought out on M12 aviation connectors, not open USB and RJ45 jacks on the rear. Cables stay locked under vibration and wet cleaning. Specify the pin map with sales if the line already uses a given M12 standard.

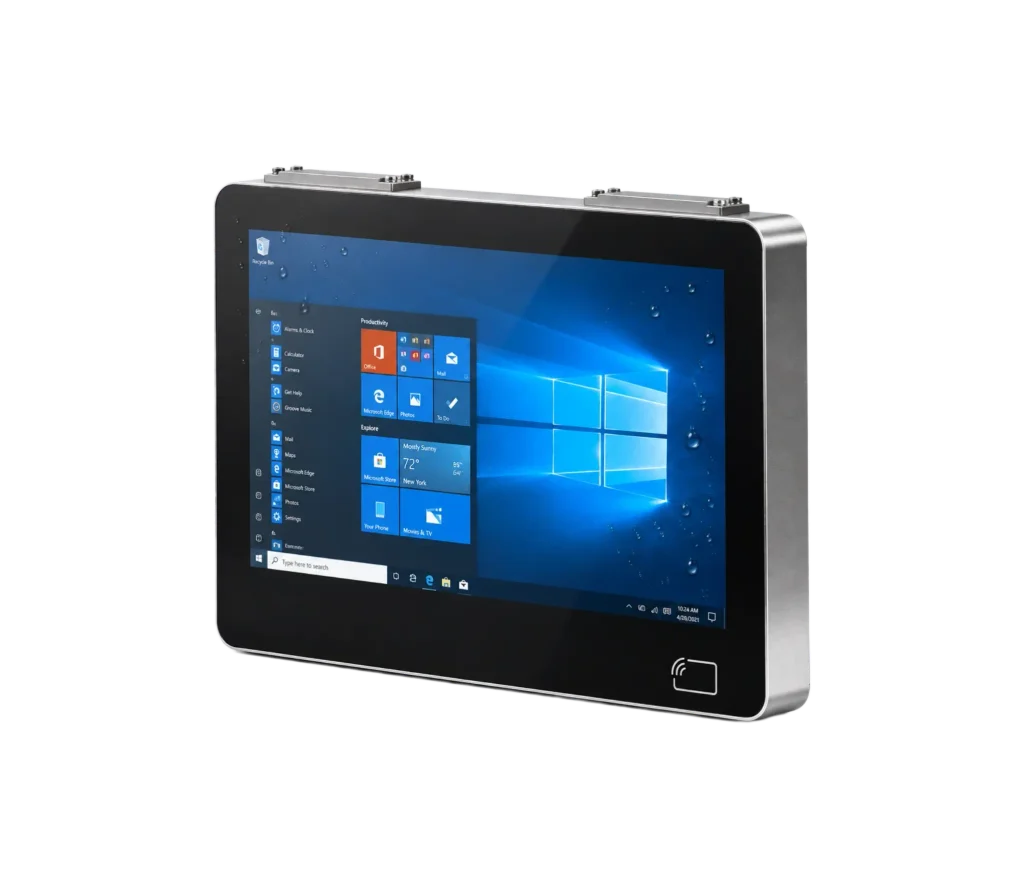

Full-Glass Front on a Stainless Enclosure

The operator face is a continuous glass surface in a stainless-steel housing. It is not a standard panel PC dropped into a stainless chassis with a separate bezel. Fewer frame gaps mean fewer dirt traps and a front that can be sanitised as one plane.

Product Model

RUGSTORM D156WP

Screen Size:15.6-inch, 1920 x 1080 resolution
OS: Windows® 10 / Linux
CPU: Intel® J6412 / Intel® Core™i5-1235U
Memory: 1x DDR4-3200MHz SO-DIMM slot, up to 32GB for Intel® J6412
Memory: 1 xM.2-2280 M Key SSD slot(SATA 3.0) for Intel® Core i5-1235U

Luminance: 350cd/m2
MTBF(hours): 50,000hrs
Contrast Ratio: 800:1

I/O Interfaces:
– POWER button x 1, DC_IN x 1, USB x 1
– M12, USB x 1
– M12, LAN x 2
– M12, COM x2

RUGSTORM D215WP

Screen Size:21.5-inch, 1920 x 1080 resolution
OS: Windows® 10 / Linux
CPU: Intel® J6412 / Intel® Core™i5-1235U
Memory: 1x DDR4-3200MHz SO-DIMM slot, up to 32GB for Intel® J6412
Memory: 1 xM.2-2280 M Key SSD slot(SATA 3.0) for Intel® Core i5-1235U

Luminance: 250cd/m2
MTBF(hours): 50,000hrs
Contrast Ratio: 1,000:1

I/O Interfaces:
– POWER button x 1, DC_IN x 1, USB x 1
– M12, USB x 1
– M12, LAN x 2
– M12, COM x2

RUGSTORM D238WP

Screen Size:23.8-inch, 1920 x 1080 resolution
OS: Windows® 10 / Linux
CPU: Intel® J6412 / Intel® Core™i5-1235U
Memory: 1x DDR4-3200MHz SO-DIMM slot, up to 32GB for Intel® J6412
Memory: 1 xM.2-2280 M Key SSD slot(SATA 3.0) for Intel® Core i5-1235U

Luminance: 250cd/m2
MTBF(hours): 30,000hrs
Contrast Ratio: 3,000:1

I/O Interfaces:
– POWER button x 1, DC_IN x 1, USB x 1
– M12, USB x 1
– M12, LAN x 2
– M12, COM x2

Customisation Service

RUGSTORM brings more than 15 years of ODM expertise together with its own factory and laboratory to deliver customisation at speed and scale.

With full control over design, engineering, manufacturing, and after‑sales support, RUGSTORM turns complex requirements into fast, cost‑effective solutions.

Whether it’s custom I/O, tailored firmware, mechanical tweaks, or branded finishes, every modification is precise, reliable, and built to fit your workflow perfectly.

Application Scenarios

A white and grey interactive digital kiosk mounted to a white pillar in a coffee shop, displaying a visual menu with coffee drink photos.

Catering

Kiosk

Healthcare

A close-up of a black golf cart interior featuring a bright, integrated LCD display screen on the dashboard, parked on a lush green golf course.

Ball Picker

A safety inspector in an orange reflective jumpsuit, white hard hat, and hearing protection holding a clipboard at an industrial facility.

Maintenance

Robotic Arm Control

A digital HMI touch screen mounted on industrial machinery in a clean factory setting, displaying a technical schematic and real-time data dashboard with blue and orange interface buttons.

Industrial Equipment

A busy, modern urban cafe with large glass windows and people sitting at outdoor tables during the day.

Store Management

More Applications

Specification Comparison

System	Product Model	D156WP	D215WP	D238WP
	CPU	Intel® J6412, Quad-core,base frequency 2.0GHz,TDP 10W Intel® Core™ i5-1235U (optional)
	Memory	1x DDR4-3200MHz SO-DIMM slot, up to 32GB
	Storage	Intel® J6412: 1 x M.2-2242 B Key SSD slot(SATA 3.0) Intel® Corei5-1235U: 1 xM.2-2280 M Key SSD slot(SATA 3.0)
	USB	2 x USB2.0
	COM	2 x RS-232(COM1, RS-485 optional)
	LAN	2 x GbE(RJ45), Intel i210-AT controller
	Other I/O	1 x POWER/ 1 x DC IN / 2 x LAN / 2 x COM / 2x USB
	WiFi	Support the WLAN standard IEEE 802.11 a/g/n
	NFC	13.56MHz
Display	Size	15.6″ FHD TFT LCD	21.5″ FHD TFT LCD	23.8″ FHD TFT LCD
	Resolution	1920 x 1080	1920 x 1080	1920 x 1080
	Luminance	350cd/m2	250cd/m2	250cd/m2
	MTBF(hours）	50000hrs	50000hrs	30000hrs
	Contrast Ratio	800 : 1	1000 : 1	3000 : 1
Touch Screen	Type	Multi-touch, capacitive touch screen
	Transmittance	≥ 87%
	Controller interface	USB 2.0
OS	OS	Windows 10 / Linux
Power Consumption	Voltage Input	DC 12~24V
	Idle Power Consumption	Intel® J6412 CPU: <60W Intel® Core™i5-1235U: <84W
Physical	Housing Material	Rugged stainless steel
	Dimension	398 x 256 x 72.5 mm	530.5 x 330 x 80 mm	581 x 359 x72.5
	VESA	100mm x 100mm
	Net Weight	6.35kg	8.5kg	9.95kg
Environment	Operating Temp	0 ~ 50℃
	Storage Temp	-20 ~ 60℃
	Humidity	5~95% @40°(non-condensing)
	Vibration	SSD applied:1.5Grms,IEC 60068-2-64,random,5~500Hz,1 hr/axis
	Shock	Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27
	EMC	CE/FCC Class B RUGSTORM holds a wide range of certifications across multiple countries. For more information, please contact us at [email protected]
	Waterproof	IP69K
