RUGSTORM Touch Panel PC – Stainless Series covers 15.6-inch, 21.5-inch and 23.8-inch models (D156WP / D215WP / D238WP). Stainless housing, full-glass front, IP69K and M12 connectors for wash-down lines. Windows® 10 or Linux on Intel® J6412 or Intel® Core™ i5-1235U.
RUGSTORM Touch Panel PC – Stainless Series is specified IP69K for high-pressure, high-temperature cleaning. It is intended for food, pharmaceutical and wet process cabinets that are wiped or hosed down every shift.
I/O is brought out on M12 aviation connectors, not open USB and RJ45 jacks on the rear. Cables stay locked under vibration and wet cleaning. Specify the pin map with sales if the line already uses a given M12 standard.

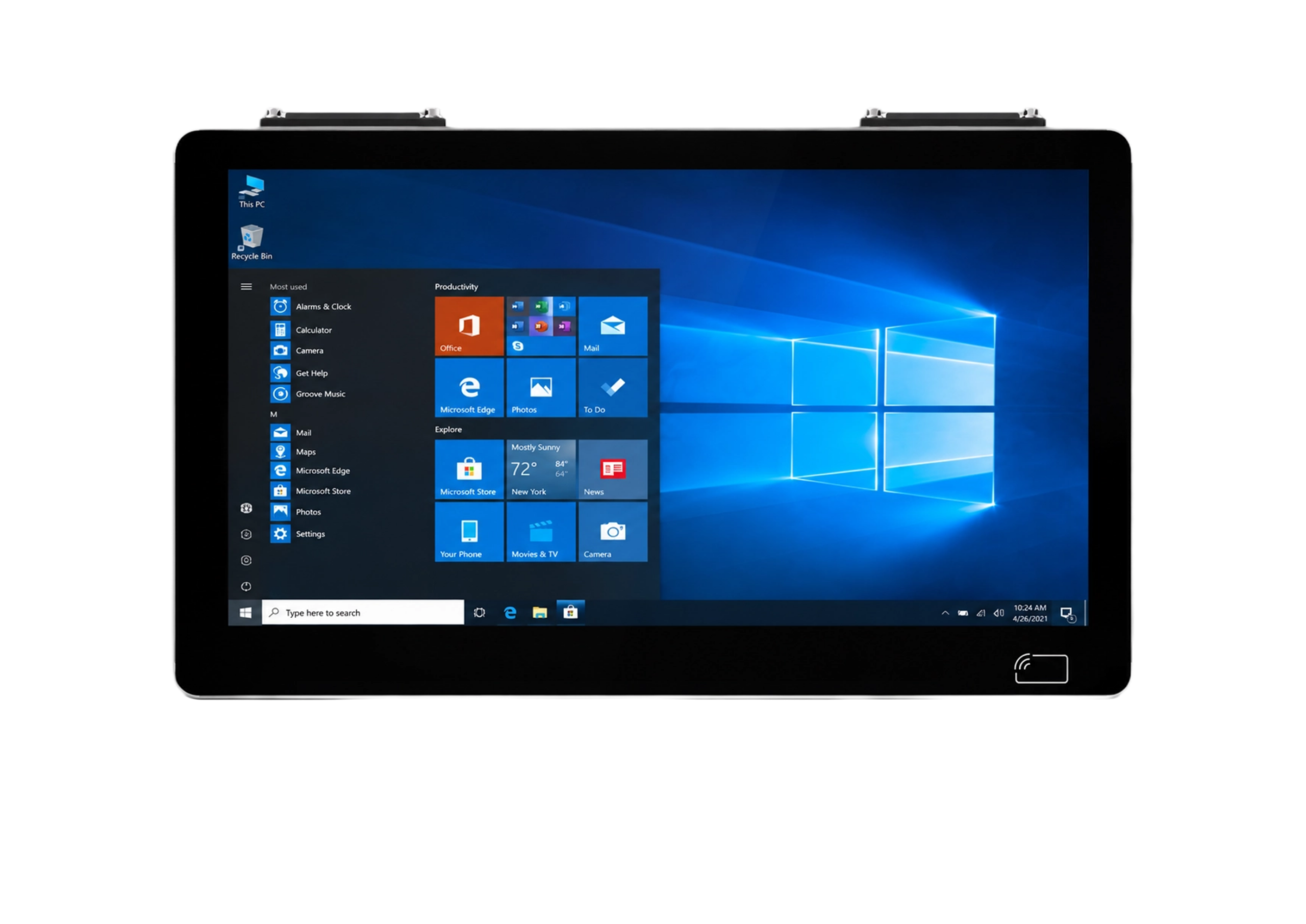

The operator face is a continuous glass surface in a stainless-steel housing. It is not a standard panel PC dropped into a stainless chassis with a separate bezel. Fewer frame gaps mean fewer dirt traps and a front that can be sanitised as one plane.

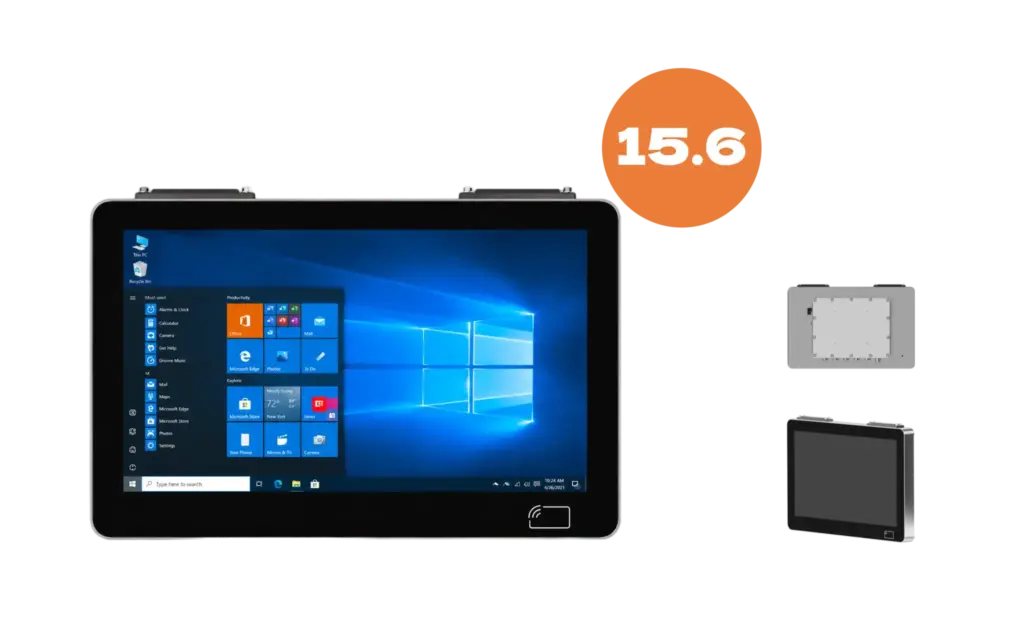

Screen Size:15.6-inch, 1920 x 1080 resolution
OS: Windows® 10 / Linux
CPU: Intel® J6412 / Intel® Core™i5-1235U
Memory: 1x DDR4-3200MHz SO-DIMM slot, up to 32GB for Intel® J6412
Memory: 1 xM.2-2280 M Key SSD slot(SATA 3.0) for Intel® Core i5-1235U
Luminance: 350cd/m2
MTBF(hours): 50,000hrs
Contrast Ratio: 800:1
I/O Interfaces:
– POWER button x 1, DC_IN x 1, USB x 1
– M12, USB x 1
– M12, LAN x 2
– M12, COM x2

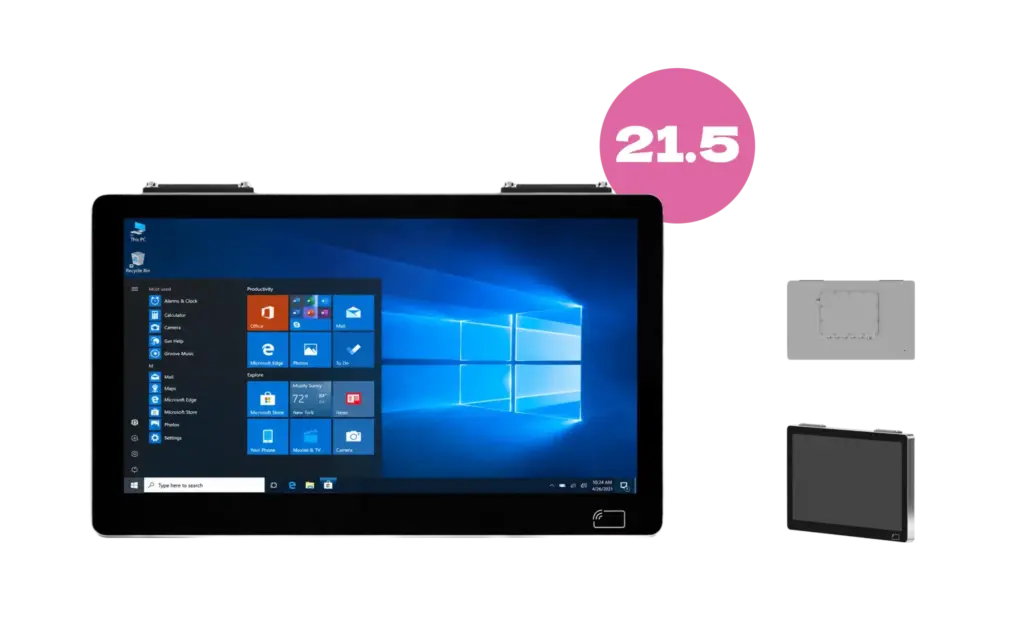

Screen Size:21.5-inch, 1920 x 1080 resolution
OS: Windows® 10 / Linux
CPU: Intel® J6412 / Intel® Core™i5-1235U
Memory: 1x DDR4-3200MHz SO-DIMM slot, up to 32GB for Intel® J6412
Memory: 1 xM.2-2280 M Key SSD slot(SATA 3.0) for Intel® Core i5-1235U
Luminance: 250cd/m2
MTBF(hours): 50,000hrs
Contrast Ratio: 1,000:1
I/O Interfaces:
– POWER button x 1, DC_IN x 1, USB x 1
– M12, USB x 1
– M12, LAN x 2
– M12, COM x2

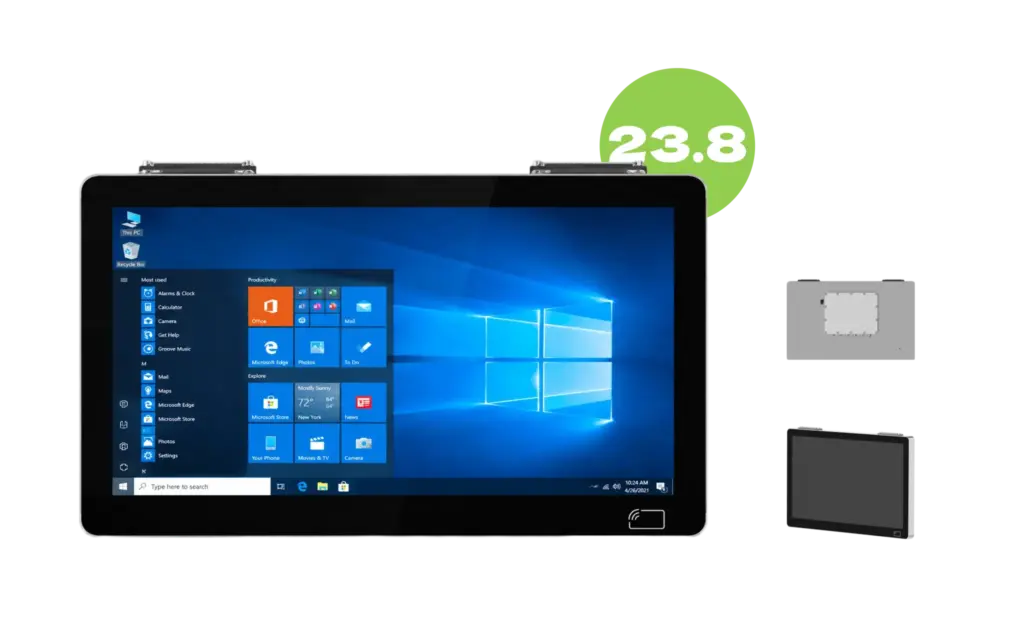

Screen Size:23.8-inch, 1920 x 1080 resolution
OS: Windows® 10 / Linux
CPU: Intel® J6412 / Intel® Core™i5-1235U
Memory: 1x DDR4-3200MHz SO-DIMM slot, up to 32GB for Intel® J6412
Memory: 1 xM.2-2280 M Key SSD slot(SATA 3.0) for Intel® Core i5-1235U
Luminance: 250cd/m2
MTBF(hours): 30,000hrs
Contrast Ratio: 3,000:1
I/O Interfaces:
– POWER button x 1, DC_IN x 1, USB x 1
– M12, USB x 1
– M12, LAN x 2
– M12, COM x2
RUGSTORM brings more than 15 years of ODM expertise together with its own factory and laboratory to deliver customisation at speed and scale.
With full control over design, engineering, manufacturing, and after‑sales support, RUGSTORM turns complex requirements into fast, cost‑effective solutions.
Whether it’s custom I/O, tailored firmware, mechanical tweaks, or branded finishes, every modification is precise, reliable, and built to fit your workflow perfectly.
| System | Product Model | D156WP | D215WP | D238WP |
| CPU | Intel® J6412, Quad-core,base frequency 2.0GHz,TDP 10W Intel® Core™ i5-1235U (optional) | |||
| Memory | 1x DDR4-3200MHz SO-DIMM slot, up to 32GB | |||
| Storage | Intel® J6412: 1 x M.2-2242 B Key SSD slot(SATA 3.0) Intel® Corei5-1235U: 1 xM.2-2280 M Key SSD slot(SATA 3.0) | |||
| USB | 2 x USB2.0 | |||
| COM | 2 x RS-232(COM1, RS-485 optional) | |||
| LAN | 2 x GbE(RJ45), Intel i210-AT controller | |||
| Other I/O | 1 x POWER/ 1 x DC IN / 2 x LAN / 2 x COM / 2x USB | |||
| WiFi | Support the WLAN standard IEEE 802.11 a/g/n | |||
| NFC | 13.56MHz | |||
| Display | Size | 15.6″ FHD TFT LCD | 21.5″ FHD TFT LCD | 23.8″ FHD TFT LCD |
| Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | |
| Luminance | 350cd/m2 | 250cd/m2 | 250cd/m2 | |
| MTBF(hours） | 50000hrs | 50000hrs | 30000hrs | |
| Contrast Ratio | 800 : 1 | 1000 : 1 | 3000 : 1 | |
| Touch Screen | Type | Multi-touch, capacitive touch screen | ||
| Transmittance | ≥ 87% | |||
| Controller interface | USB 2.0 | |||
| OS | OS | Windows 10 / Linux | ||
| Power Consumption | Voltage Input | DC 12~24V | ||
| Idle Power Consumption | Intel® J6412 CPU: <60W Intel® Core™i5-1235U: <84W | |||
| Physical | Housing Material | Rugged stainless steel | ||
| Dimension | 398 x 256 x 72.5 mm | 530.5 x 330 x 80 mm | 581 x 359 x72.5 | |
| VESA | 100mm x 100mm | |||
| Net Weight | 6.35kg | 8.5kg | 9.95kg | |
| Environment | Operating Temp | 0 ~ 50℃ | ||
| Storage Temp | -20 ~ 60℃ | |||
| Humidity | 5~95% @40°(non-condensing) | |||
| Vibration | SSD applied:1.5Grms,IEC 60068-2-64,random,5~500Hz,1 hr/axis | |||
| Shock | Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27 | |||
| EMC | CE/FCC Class B RUGSTORM holds a wide range of certifications across multiple countries. For more information, please contact us at [email protected] | |||
| Waterproof | IP69K | |||
From the first sketch to the final assembly, we own the process. Our end-to-end factory operations mean we don’t just meet your specs—we perfect them, whether it’s a standard tweak or a full-scale custom build.
With hubs in Japan, China, and the Netherlands, we provide a seamless support bridge between Asia and Europe. You get the power of a global network with the responsiveness of a local partner.
Since 2019, we’ve operated in “no-fail” sectors like public safety and critical infrastructure. We don’t just build products, we build reliability that meets the world’s toughest standards.
| System | Product Model | D156WP | D215WP | D238WP |
| CPU | Intel® J6412, Quad-core,base frequency 2.0GHz,TDP 10W
Intel® Core™ i5-1235U (optional) |
|||
| Memory | 1x DDR4-3200MHz SO-DIMM slot, up to 32GB | |||
| Storage | Intel® J6412: 1 x M.2-2242 B Key SSD slot(SATA 3.0)
Intel® Corei5-1235U: 1 xM.2-2280 M Key SSD slot(SATA 3.0) |
|||
| USB | 2 x USB2.0 | |||
| COM | 2 x RS-232(COM1,RS-485 optional) | |||
| LAN | 2 x GbE(RJ45),Intel i210-AT controller | |||
| Other I/O | 1 x POWER/ 1 x DC IN / 2 x LAN / 2 x COM / 2x USB | |||
| WiFi | Support the WLAN standard IEEE 802.11 a/g/n | |||
| NFC | 13.56MHz | |||
| Display | Size | 15.6″ FHD TFT LCD | 21.5″ FHD TFT LCD | 23.8″ FHD TFT LCD |
| Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | |
| Luminance | 350cd/m2 | 250cd/m2 | 250cd/m2 | |
| MTBF(hours） | 50000hrs | 50000hrs | 30000hrs | |
| Contrast Ratio | 800 : 1 | 1000 : 1 | 3000 : 1 | |
| Touch Screen | Type | Multi-touch, capacitive touch screen | ||
| Transmittance | ≥ 87% | |||
| Controller interface | USB 2.0 | |||
| OS | OS | Windows 10 / Linux | ||
| Power Consumption | Voltage Input | DC 12~24V | ||
| Idle Power Consumption | Intel® J6412 CPU: <60W Intel® Core™i5-1235U: <84W |
|||
| Physical | Housing Material | Rugged stainless steel | ||
| Dimension | 398 x 256 x 72.5 mm | 530.5 x 330 x 80 mm | 581 x 359 x72.5 | |
| VESA | 100mm x 100mm | |||
| Net Weight | 6.35kg | 8.5kg | 9.95kg | |
| Environment | Operating Temperature | 0 ~ 50℃ | ||
| Storage Temperature | -20 ~ 60℃ | |||
| Humidity | 5~95% @40°(non-condensing) | |||
| Vibration | SSD applied:1.5Grms,IEC 60068-2-64,random,5~500Hz,1 hr/axis | |||
| Shock | Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27 | |||
| EMC | CE/FCC Class B RUGSTORM holds a wide range of certifications across multiple countries. For more information, please contact us at [email protected] |
|||
| Waterproof | IP69K | |||
