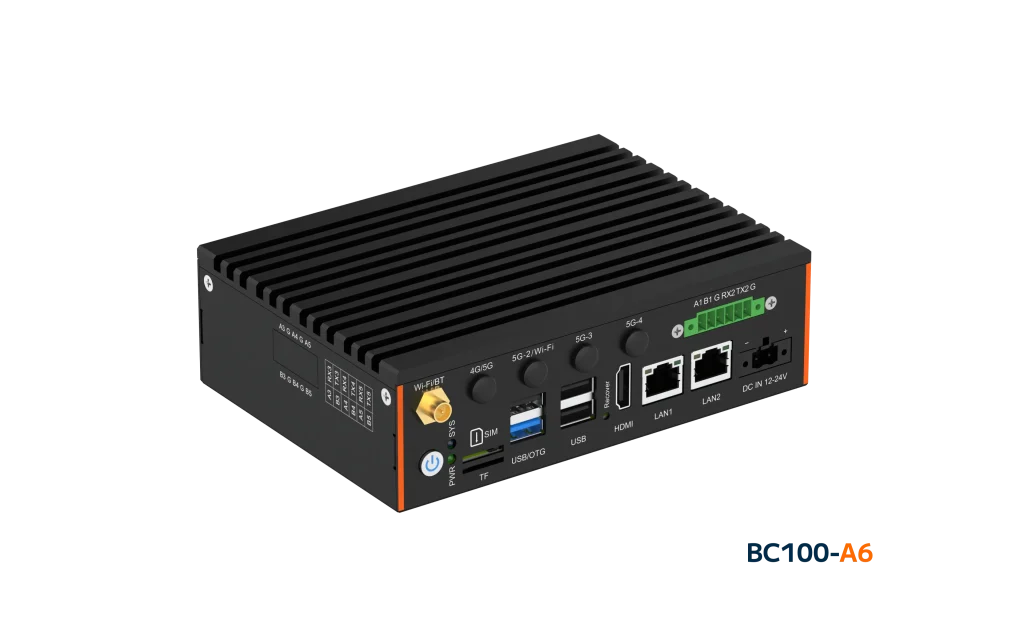

The aluminum fanless ARM industrial Box PC – BC100-A Series is built for edge AI, video analysis and IoT gateway applications, powered by Rockchip RK3576/RK3588 octa-core processors with built-in NPU for local AI computing. It supports abundant network, serial and storage expansion, wide voltage power input and ultra-wide temperature working range, with wall/DIN rail mounting options.
OS: Android / Debian / Ubuntu
CPU: Rockchip RK3576 / Rockchip RK3588
GPU: G52 MC3 / Mali-G610 MC4
NPU: 6TOPS (INT8)
Memory: Onboard LPDDR4 4GB
Storage: Onboard 32GB eMMC; 1×TF card slot; 1×mSATA SATA3.0 slot
Box PC
OS: Android 14 / Debian 12 / Ubuntu 22.04
CPU: Rockchip RK3576 8-core (4×Cortex-A72+4×Cortex-A53, up to 2.2GHz)
GPU: G52 MC3
NPU: 6TOPS (INT8)
Memory: Onboard LPDDR4 4GB
Storage: Onboard 32GB eMMC; 1×TF card slot; 1×mSATA SATA3.0 slot
I/O Interfaces:
– Network: 2×Gigabit RJ45 LAN; Onboard Wi-Fi 2.4G/5G + Bluetooth 5.0; Mini-PCIe slot for optional LTE 4G/Wi-Fi 6
– USB: 3×USB2.0 + 1×USB3.0 (OTG multiplexing)
– COM: 1×RS485 + 1×RS232 (6PIN terminal); Extra 3-channel RS232/485 via optional expansion
– SIM: 1×Micro SIM card slot
– Display: 1×HDMI, max 4K@30Hz (BC101-A6); max 8K@30Hz (BC101-A8)
– Control: 1×Power LED, 1×System LED; 1×Power button + 1×Recover flashing button
OS: Android 13 / Debian 11 / Ubuntu 20.04
CPU: Rockchip RK3588 8-core (4×Cortex-A55+4×Cortex-A76, up to 2.4GHz)
GPU: Mali-G610 MC4
NPU: 6TOPS (INT8)
Memory: Onboard LPDDR4 4GB
Storage: Onboard 32GB eMMC; 1×TF card slot; 1×mSATA SATA3.0 slot
I/O Interfaces:
– Network: ≥2×Gigabit RJ45 LAN; Onboard Wi-Fi 2.4G/5G + Bluetooth 5.0; Mini-PCIe slot for optional LTE 4G/Wi-Fi 6
– USB: 3×USB2.0 + 1×USB3.0 (OTG multiplexing)
– COM: 1×RS485 + 1×RS232 (6PIN terminal); Extra 3-channel RS232/485 via optional expansion
– SIM: 1×Micro SIM card slot
– Display: 1×HDMI, max 4K@30Hz (BC101-A6); max 8K@30Hz (BC101-A8)
– Control: 1×Power LED, 1×System LED; 1×Power button + 1×Recover flashing button
| Model | BC101-A6 | |
| System | CPU | Rockchip RK3576 8-core |
| 4*Cortex-A72+4*Cortex-A53 up to 2.2GHz | ||
| GPU | G52 MC3 | |
| NPU | 6TOPS (INT8) | |
| Memory | Onboard LPDDR4 4GB | |
| Storage | Onboard 32GB eMMC | |
| TF | 1 x TF card slot, supporting storage expansion | |
| Mini-PCIe | 1 x Mini-PCIe slot Support mSATA SATA 3.0 SSD (RK3588 support, Reuse with 4G/ Wi-Fi 6) | |
| SATA 3.0 | 1 x SATA 3.0, Support mSATA SATA 3.0 SSD (RK3576/RK3588 support) | |
| Network | 2 x 10/100/1000Mbps RJ-45 Ethernet Interface | |
| On board 2.4G/5G Wi-Fi, support Wi-Fi 802.11 a/b/g/n/ac protocol +Bluetooth 5.0 | ||
| 1 x Mini-PCIe slot, support LTE 4G/Wi-Fi 6 modules (Optional) | ||
| 1 x M.2, support 5G modules (Optional) | ||
| I/O | USB | 3 x USB2.0 , 1 x USB3.0 (OTG multiplexing） |
| COM | 1 x RS485 ,1 x RS23, 3.5mm spacing 6PIN terminal | |
| 1 x 3RS232/485 modules, 3-channel RS232 or RS485 can be configured | ||
| SIM | 1 x Micro SIM card slot | |
| LED | 1 x Power LED (green on) ,1 x System LED (blue on) | |
| HDMI | 1 x HDMI interface, supporting up to 4K (3840*2160)/8K (7680*4320 RK3588) output | |
| Button | 1 x Recover flashing button，1 x Power button | |
| OS | Android | Android 14 |
| Linux | Debian 12、Ubuntu 22 .04 | |
| Power | Voltage Input | DC 12~24V ±10%, overcurrent, overvoltage and polarity inverse protection |
| Power Consumption | ≤ 20W | |
| Certification | EMC | CE/FCC Class A |
| Physical | Dimension | 156mm x 112mm x 53.2mm (excluding bracket) |
| Net Weight | 1.5Kg | |
| Environment | Operating Temp | -20 ~ 70℃ |
| Storage Temp | -40 ~ 80℃ | |
| Humidity | 5~95% @40° (non-condensing) | |
| Vibration | SSD applied:1.5Grms,IEC 60068-2-64,random,5~500Hz,1 hr/axis | |
| Impact | 20G peak acceleration(11ms duration) with SSD, Follow IEC60068-2-27 | |
| Model | BC101-A8 | |
| System | CPU | Rockchip RK3588 8-core |
| 4*Cortex-A55+4*Cortex-A76 up to 2.4GHz | ||
| GPU | Mali-G610 MC4 | |
| NPU | 6TOPS (INT8) | |
| Memory | Onboard LPDDR4 4GB | |
| Storage | Onboard 32GB eMMC | |
| TF | 1 x TF card slot, supporting storage expansion | |
| Mini-PCIe | 1 x Mini-PCIe slot Support mSATA SATA 3.0 SSD (RK3588 support, Reuse with 4G/ Wi-Fi 6) | |
| SATA 3.0 | 1 x SATA 3.0, Support mSATA SATA 3.0 SSD (RK3576/RK3588 support) | |
| Network | >2 x 10/100/1000Mbps RJ-45 Ethernet Interface | |
| >On board 2.4G/5G Wi-Fi, support Wi-Fi 802.11 a/b/g/n/ac protocol +Bluetooth 5.0 | ||
| >1 x Mini-PCIe slot, support LTE 4G/Wi-Fi 6 modules (Optional) | ||
| >1 x M.2, support 5G modules (Optional) | ||
| I/O | USB | 3 x USB2.0 , 1 x USB3.0 (OTG multiplexing） |
| COM | 1 x RS485 ,1 x RS23, 3.5mm spacing 6PIN terminal | |
| 1 x 3RS232/485 modules, 3-channel RS232 or RS485 can be configured | ||
| SIM | 1 x Micro SIM card slot | |
| LED | 1 x Power LED (green on) ,1 x System LED (blue on) | |
| HDMI | 1 x HDMI interface, supporting up to 4K (3840*2160)/8K (7680*4320 RK3588) output | |
| Button | 1 x Recover flashing button，1 x Power button | |
| OS | Android | Android 13 |
| Linux | Debian 11、Ubuntu 20.04 | |
| Power | Voltage Input | DC 12~24V ±10%, overcurrent, overvoltage and polarity inverse protection |
| Power Consumption | ≤ 20W | |
| Certification | EMC | CE/FCC Class A |
| Physical | Dimension | 156mm x 112mm x 53.2mm (excluding bracket) |
| Net Weight | 1.5Kg | |
| Environment | Operating Temp | -20 ~ 70℃ |
| Storage Temp | -40 ~ 80℃ | |
| Humidity | 5~95% @40° (non-condensing) | |
| Vibration | SSD applied:1.5Grms,IEC 60068-2-64,random,5~500Hz,1 hr/axis | |
| Impact | 20G peak acceleration(11ms duration) with SSD, Follow IEC60068-2-27 |
