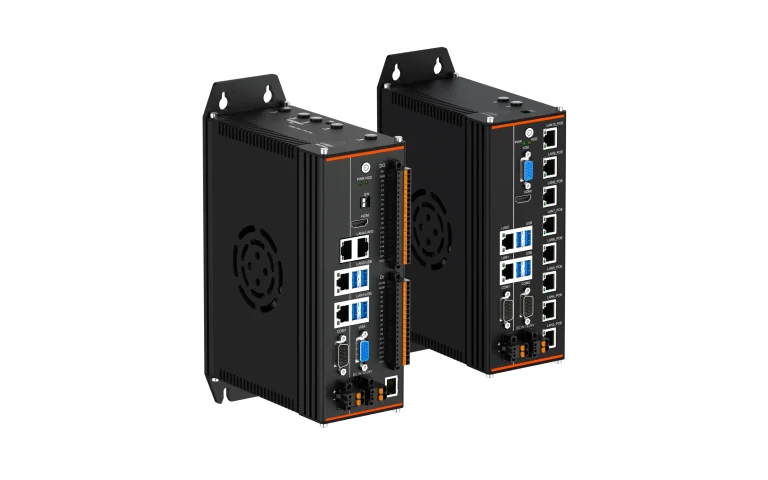

The RUGSTORM Box PC BC300-Ultra Series is designed for harsh industrial field scenarios, equipped with abundant serial and USB interfaces, high-performance Intel Ultra computing platform with built-in NPU for local AI inference, model deployment and edge computing tasks. It features wide voltage power input and complete industrial protection design, supports dual display output and miniPCIe expansion, with DIN rail/wall mounting optional, delivering stable and reliable AI-enabled operation under severe temperature, vibration and voltage fluctuation environments
Box PC
OS: Windows 10 / Widows 11 / Ubuntu / Debian / CentOS
CPU: Intel Core Ultra 255H, 16 cores/16 threads, base frequency 2GHz (P-core)/1.5GHz (E-core), 24MB Intel® Smart cache
GPU: Intel Arc 140T
NPU: Intel AI Boost
BIOS: AMI UEFI BIOS
Memory: 32GB, 2 x SO-DIMM DDR5-5600MT/s
Storage: 1TB, 1 x mSATA slot, SATA 3.0
I/O Interfaces:
– LAN: 4 standard Gigabit Ethernet ports + 1 optional expandable network port
– USB: 4×USB3.0 + 1 internal USB2.0 Type-A for hardware encryption dongles
– COM: 2 RS232/485 serial ports, max baud rate 115.2kbps with auto flow control Digital
– IO: 16 isolated DI (NPN/PNP) + 16 isolated DO (NPN/PNP)
– Display: VGA + HDMI dual display output
– Expansion: 2 full-size mini PCIe slots (1 slot with SIM card for Wi-Fi/3G/4G expansion)
– Extra: 1 remote switch
OS: Windows 10 / Widows 11 / Ubuntu / Debian / CentOS
CPU: Intel Core Ultra 255H, 16 cores/16 threads, base frequency 2GHz (P-core)/1.5GHz (E-core), 24MB Intel® Smart cache
GPU: Intel Arc graphics / Intel Arc 140T
NPU: Intel AI Boost
BIOS: AMI UEFI BIOS
Memory: 32GB, 2 x SO-DIMM DDR5-5600MT/s
Storage: 1TB, 1 x M.2 slot, 2280 B-Key SATA 3.0
I/O Interfaces:
– LAN: 2 Gigabit Ethernet ports + 8 Gigabit PoE ports
– USB: 4×USB3.0 + 1 internal USB2.0 for encryption dongles
– COM: 2 RS232/485 serial ports, up to 115.2kbps
– Display: VGA + HDMI dual display output
– Expansion: Full-size mini PCIe slot with SIM slot (Wi-Fi/4G expandable)
– Extra: 1 remote switch

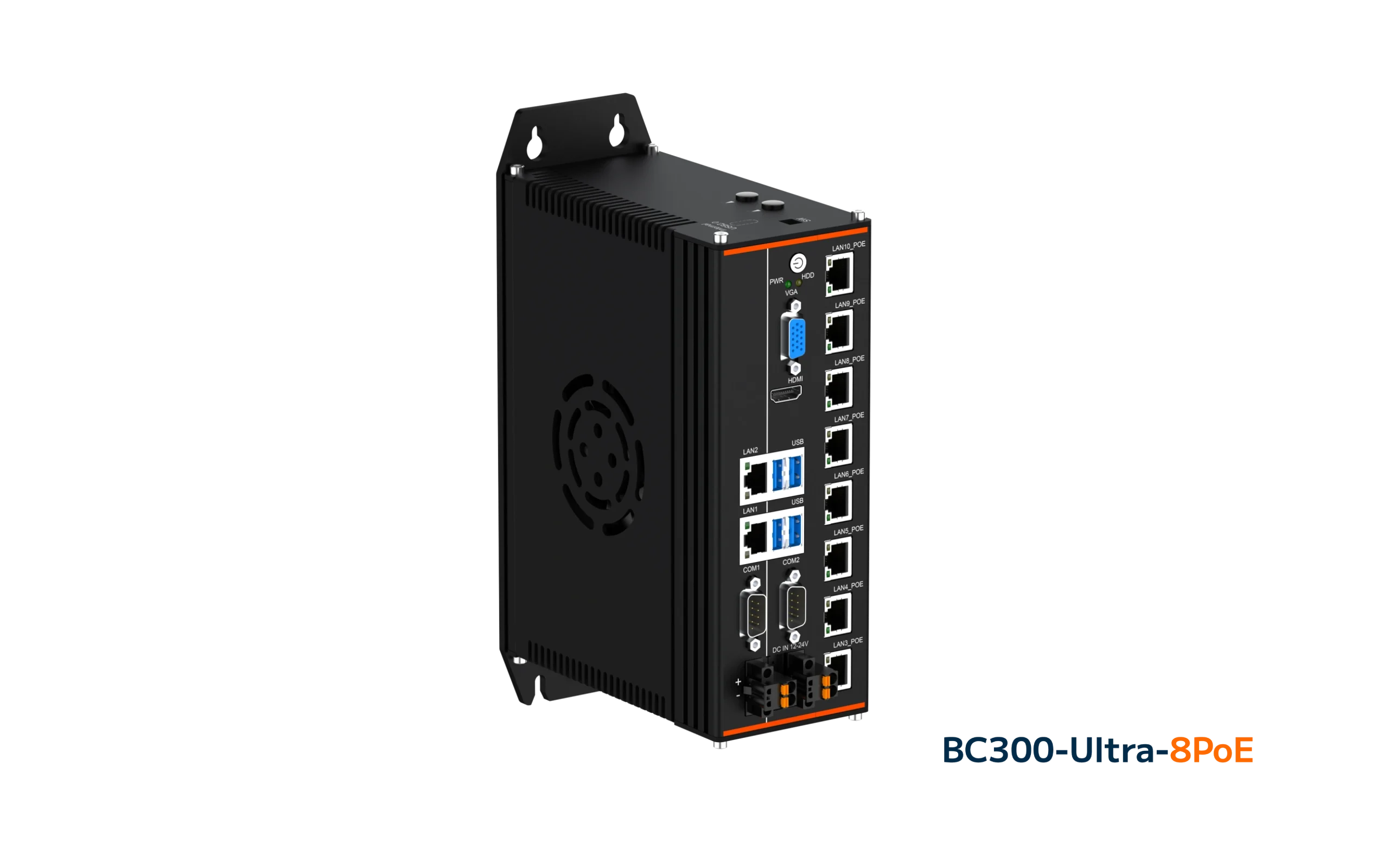

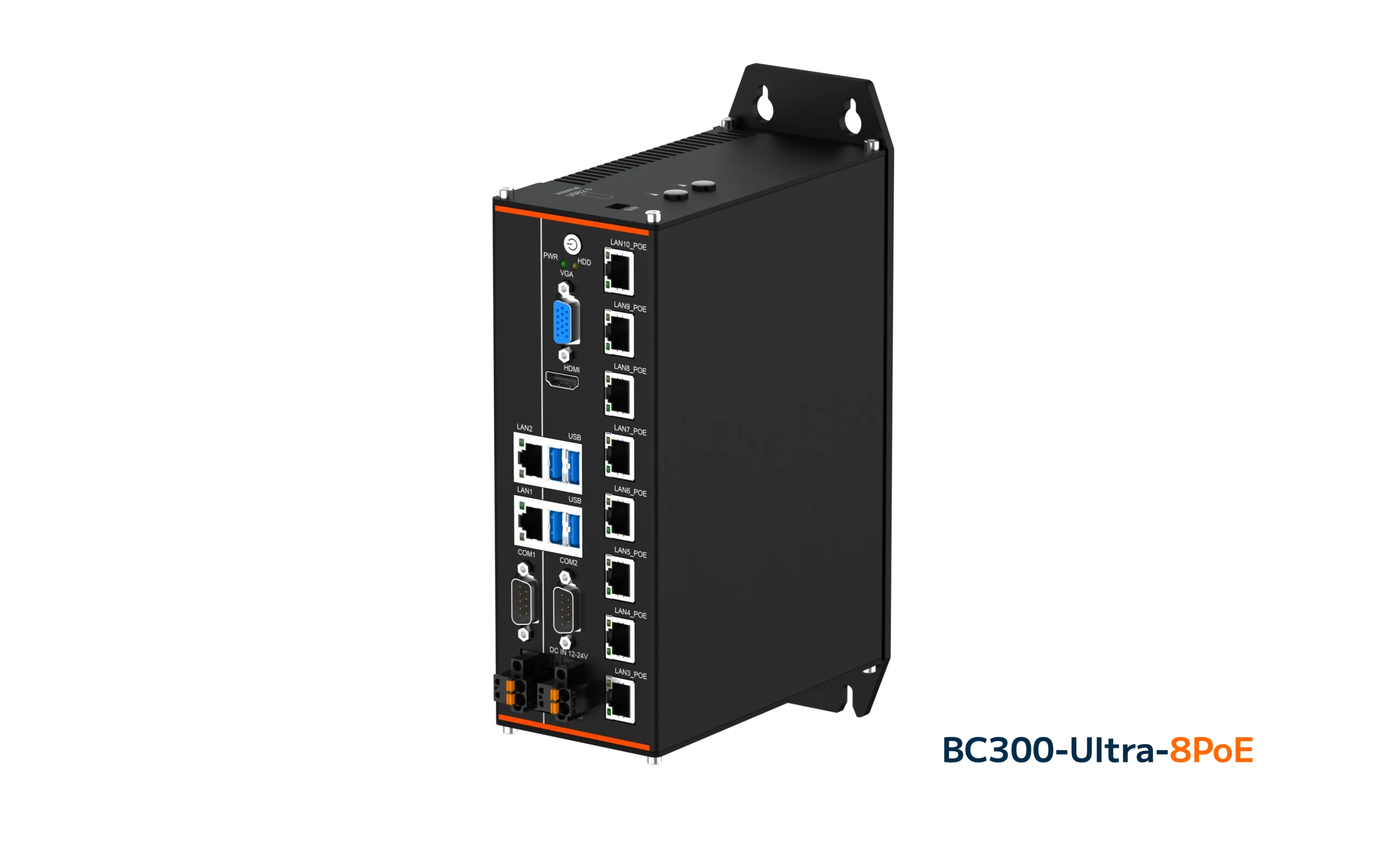

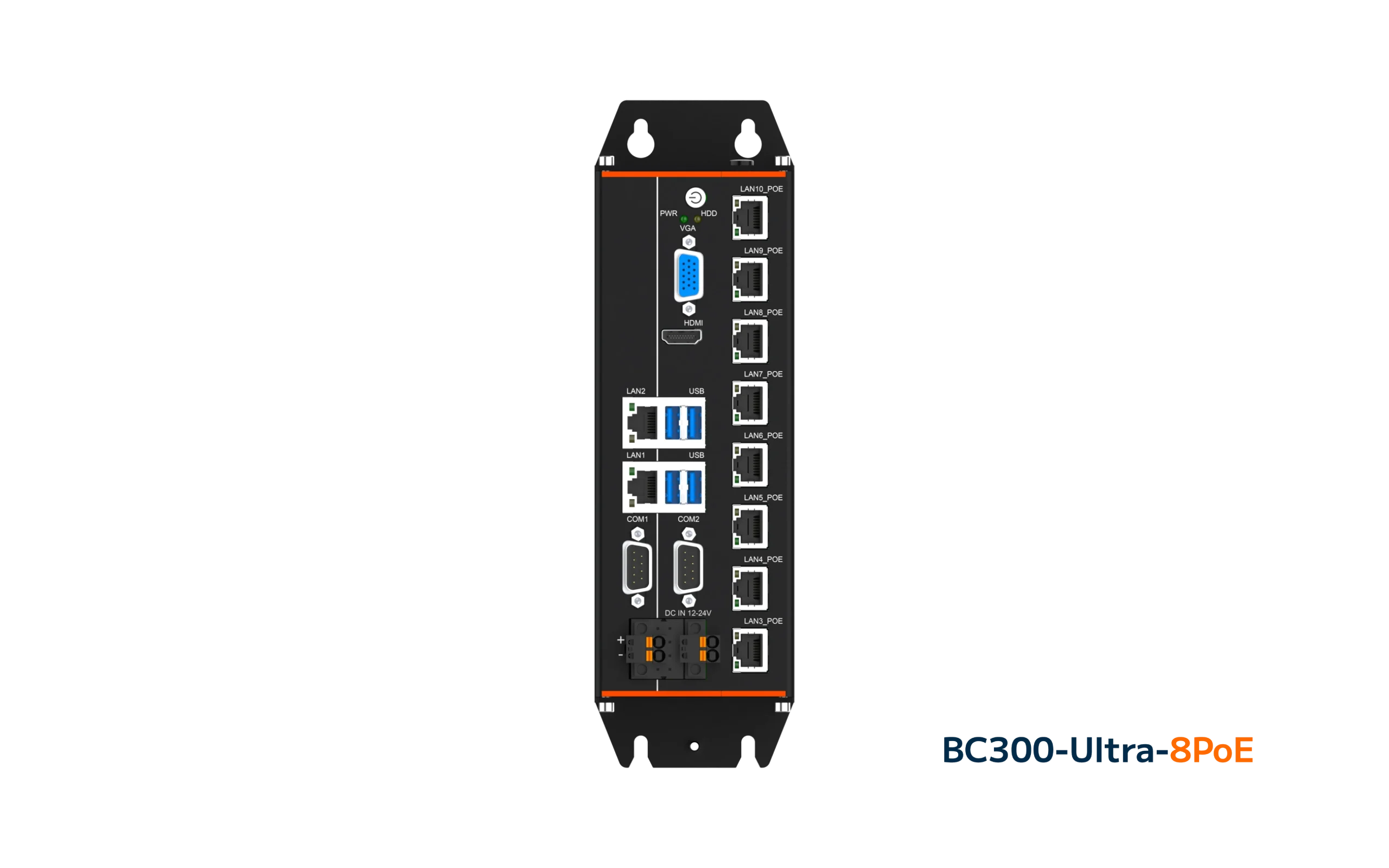

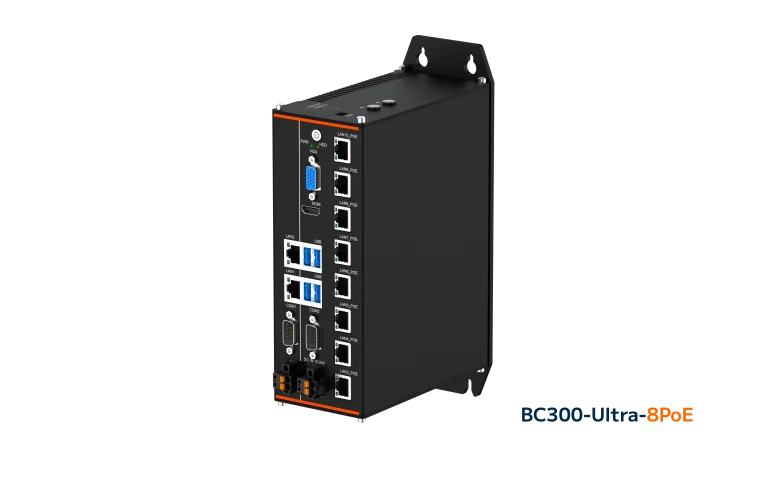

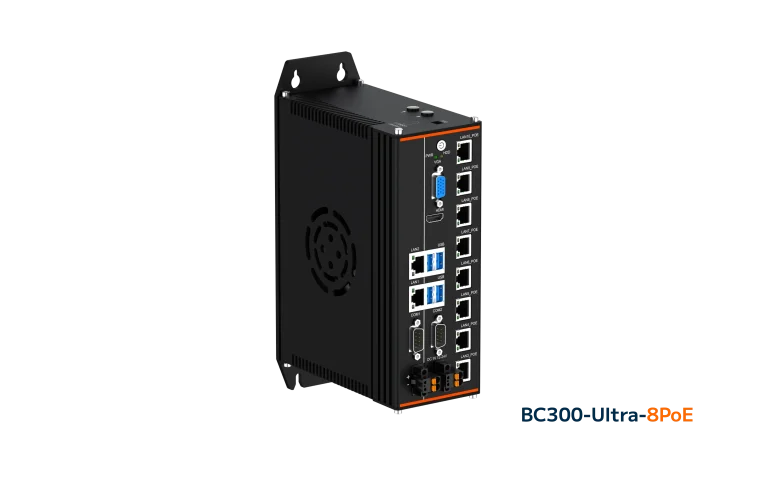

| Model | BC300-Ultra-8PoE | |
| System | CPU | Intel Core Ultra 255H, 16 cores/16 threads, base frequency 2GHz (P-core)/1.5GHz (E-core), 24MB Intel® Smart cache |
| TDP | 28W | |
| BIOS | AMI UEFI BIOS | |
| GPU | Intel® Arc™ graphics | |
| NPU | Intel® AI Boost | |
| Overall peak TOPS | 33(GPU18+NPU11) | |
| Memory | 32GB, 2 x SO-DIMM DDR5-5600MT/s | |
| Storage | 1TB, 1 x M.2 slot, 2280 B-Key SATA 3.0 | |
| Watch Dog | Programmable settings from level 1 to 255 | |
| TPM | dTPM:SLB9672XU2.0 | |
| I/O | USB | 4 x USB3.0, 1 x USB2.0 Type-A (built-in, can install hardware encryption dongle |
| COM | 2 x RS232/RS485, (COM1-2), with the maximum baud rate of 115.2 kbit/s | |
| RJ45 | 2 x Intel i210-AT Gigabit Network Port | |
| 8 x Intel i210-AT Gigabit PoE Network Port | ||
| Remote Switch | 1 x Remote switch | |
| VGA | 1 x VGA, Max 1920 x 1080 at 60Hz | |
| HDMI | 1 x HDMI, Max 3840 x 2160 at 30Hz | |
| Expansion | 1 x Full-size mini PCIe card slot, with SIM card slot | |
| OS | Microsoft Windows | Windows 10 , Windows11 |
| Linux | Ubuntu ，Debian ，CentOS | |
| Power | Voltage Input | DC 12~24V±10%,overcurrent,overvoltage protection & reverse connection prevention function |
| Power Consumption | Max 220W | |
| Certification | EMC | CE EMC, Compliant EN 55032, EN55035, EN IEC 61000 -6-2, EN IEC 61000 -6-4, FCC Class A |
| Safety Regulations | Compliant EN IEC 62368-1 | |
| Physical | Dimension | (L)200mm x (W)150.5mm x (H)74.6mm |
| Net Weight | 2.4Kg | |
| Environment | Operating Temp | -20°C ~ 60°C (-4°F ~ 140°F) With wind, use SSD |
| Storage Temp | -40ºC ~ 80ºC (-40℉ ~ 176℉) | |
| Humidity | 95% @ 40 ℃ (no condensation) | |
| Vibration | 5-500Hz, 3 Grms, SSD wall-mounted installation, in accordance with IEC 60068-2-64 SSD | |
| Impact | 30G, 11ms duration, SSD wall-mounted installation, in accordance with IEC60068-2-27 11ms | |

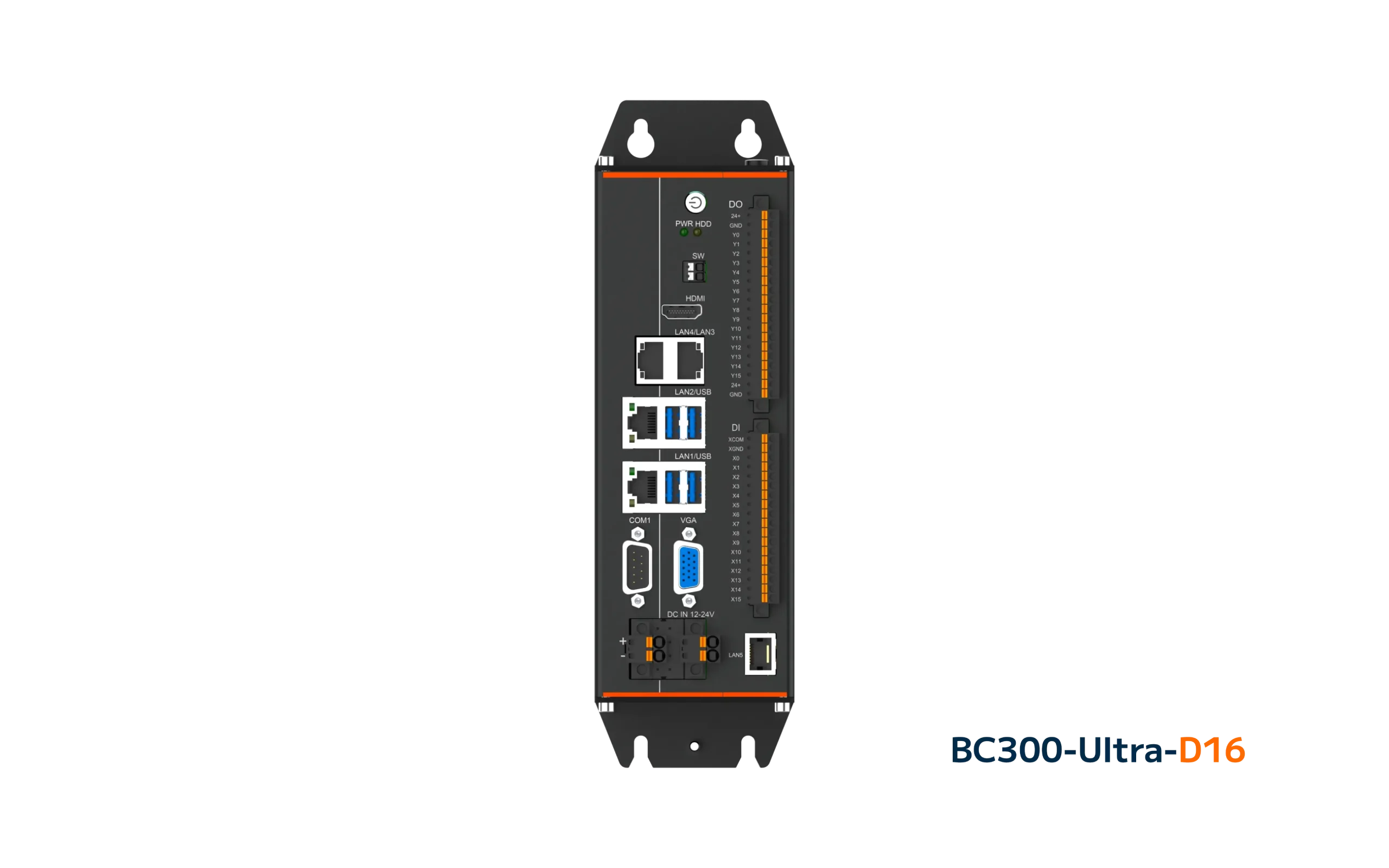

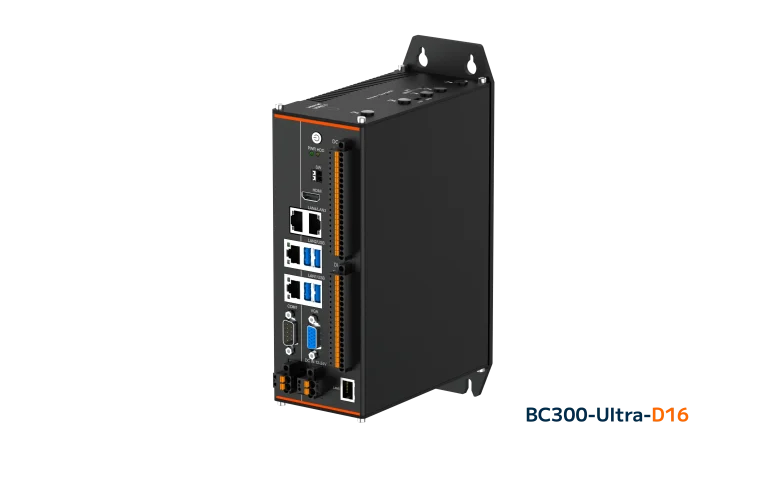

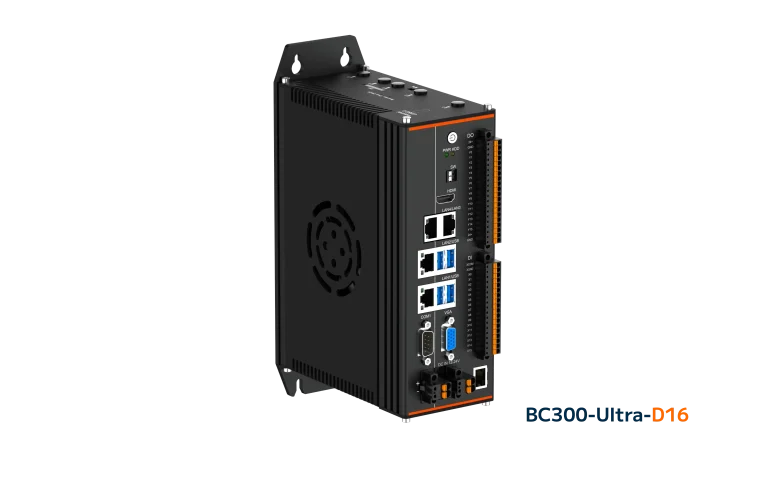

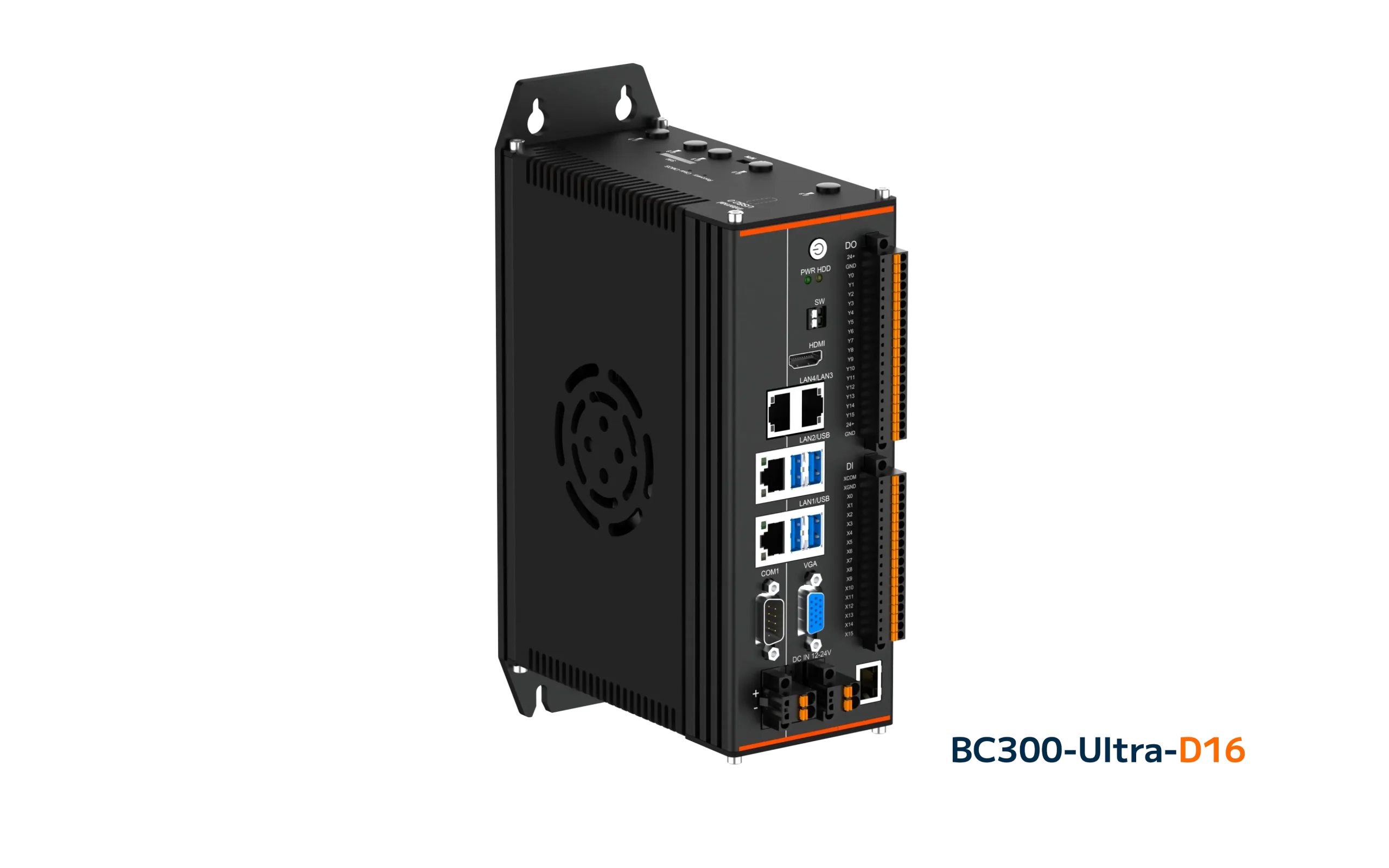

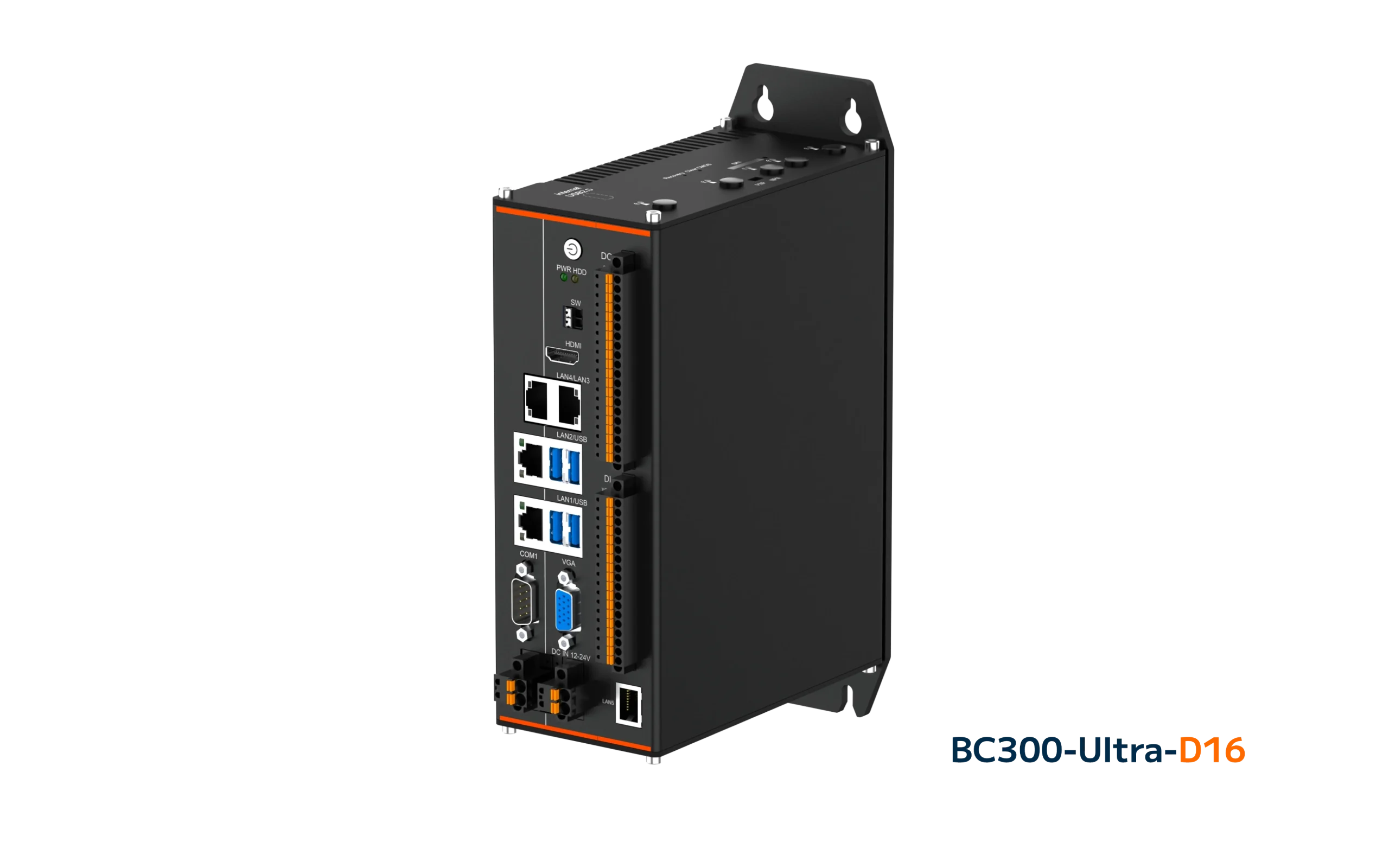

| System | Model | BC300-Ultra-D16 |
| CPU | Intel Core Ultra 255H, 16 cores/16 threads, base frequency 2GHz (P-core)/1.5GHz (E-core), 24MB Intel® Smart cache | |
| TDP | 28W | |
| BIOS | AMI UEFI BIOS | |
| GPU | Intel® Arc™ 140T GPU | |
| NPU | Intel® AI Boost | |
| Overall peak TOPS | 96(GPU74+NPU13) | |
| Memory | 32GB, 2 x SO-DIMM DDR5-5600MT/s | |
| Storage | 1TB, 1 x mSATA slot, SATA 3.0 | |
| Watch Dog | Programmable settings from level 1 to 255 | |
| TPM | dTPM:SLB9672XU2.0 | |
| I/O | USB | 4 x USB3.0, 1 x USB2.0 Type-A (built-in, can install hardware encryption dongle |
| COM | 2 x RS232/RS485, (COM1), with the maximum baud rate of 115.2 kbit/s | |
| RJ45 | 4 x Intel i210-AT Gigabit Network Port 1 x Expandable Network Port(Optional) |
|
| Remote Switch | 1 x Remote switch | |
| VGA | 1 x VGA, Max 1920 x 1080 at 60Hz | |
| HDMI | 1 x HDMI, Max 3840 x 2160 at 30Hz | |
| Expansion | 2 x Full-size mini PCIe card slot, 1 of them with SIM card slot | |
| OS | Microsoft Windows | Windows 10 , Windows11 |
| Linux | Ubuntu ，Debian ，CentOS | |
| Power | Voltage Input | DC 12~24V±10%,overcurrent,overvoltage protection & reverse connection prevention function |
| Power Consumption | Max 90W | |
| Certification | EMC | CE EMC, Compliant EN 55032, EN55035, EN IEC 61000 -6-2, EN IEC 61000 -6-4, FCC Class A |
| Safety Regulations | Compliant EN IEC 62368-1 | |
| Physical | Dimension | (L)200mm x (W)150.5mm x (H)74.6mm |
| Net Weight | 2.4Kg | |
| Environment | Operating Temp | -20°C ~ 60°C (-4°F ~ 140°F) With wind, use SSD |
| Storage Temp | -40ºC ~ 80ºC (-40℉ ~ 176℉) | |
| Humidity | 95% @ 40 ℃ (no condensation) | |
| Vibration | 5-500Hz, 3 Grms, SSD wall-mounted installation, in accordance with IEC 60068-2-64 SSD | |
| Impact | 30G, 11ms duration, SSD wall-mounted installation, in accordance with IEC60068-2-27 11ms |
