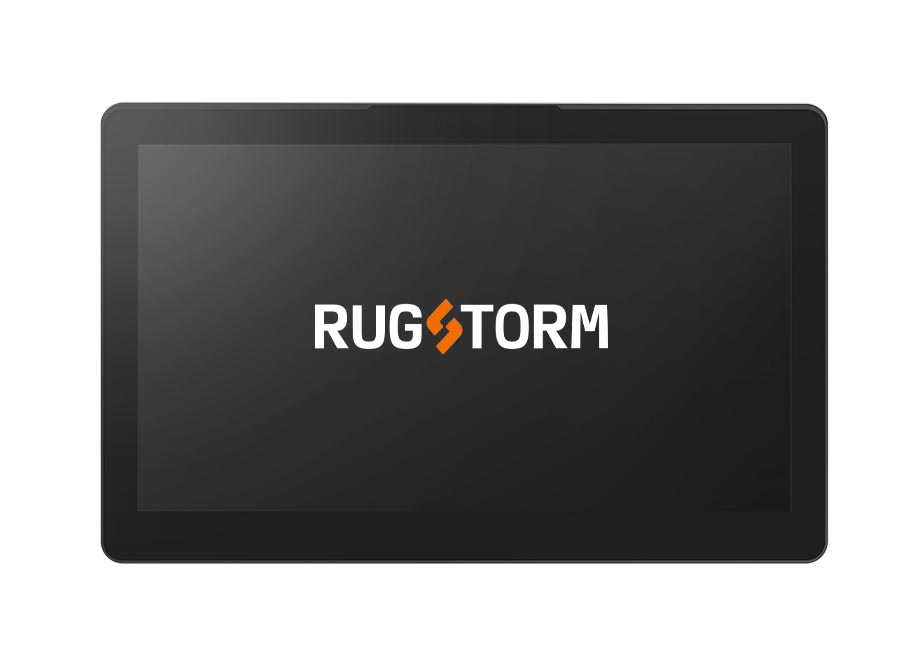

RUGSTORM Touch Panel Series features 15.6‑inch, 21.5‑inch, and 23.8‑inch industrial touch panels built for smooth performance and effortless integration. With a sleek design and responsive touchscreen, the touch panel drops seamlessly into control systems, automation lines, kiosks, and monitoring stations. Paired with RUGSTORM’s quick and cost‑effective customization services, the touch panel delivers a solution precisely tuned to your workflow and operational demands.
Touch Panel

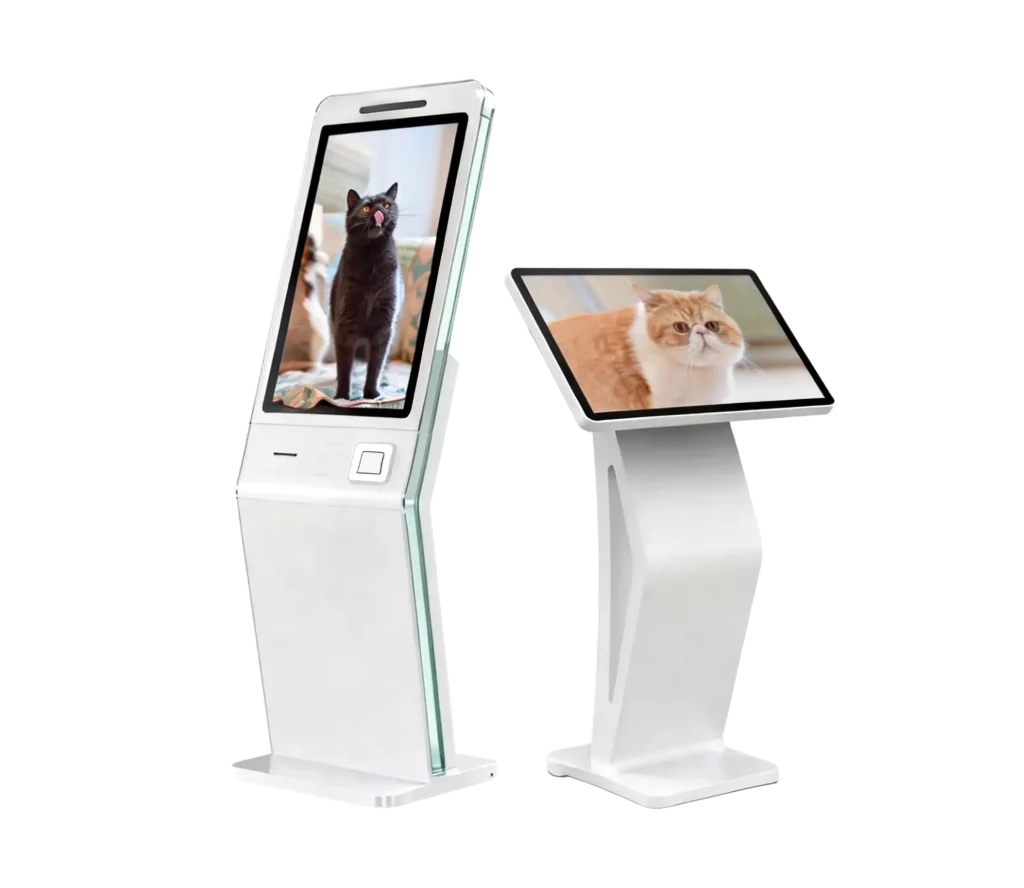

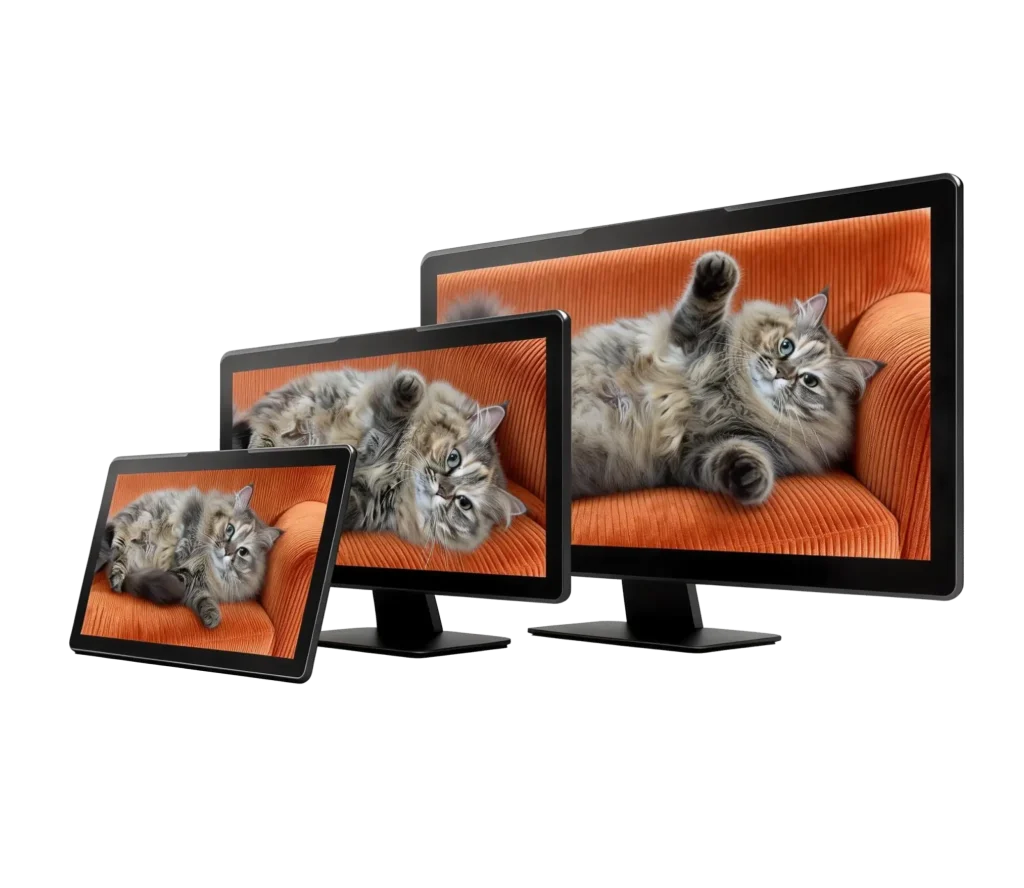

With screen sizes ranging from 15.6″ to 23.8″, the Display Series offers flexible deployment across kiosks, control panels, and monitoring stations. Each model features Full HD resolution and wide viewing angles, ensuring crisp visuals in any setup.
All models feature capacitive touchscreens with 6H surface hardness and optional IP54/IP65 front protection. Whether it’s a 5-point or 10-point touch interface, users benefit from responsive interaction and rugged durability in demanding environments.

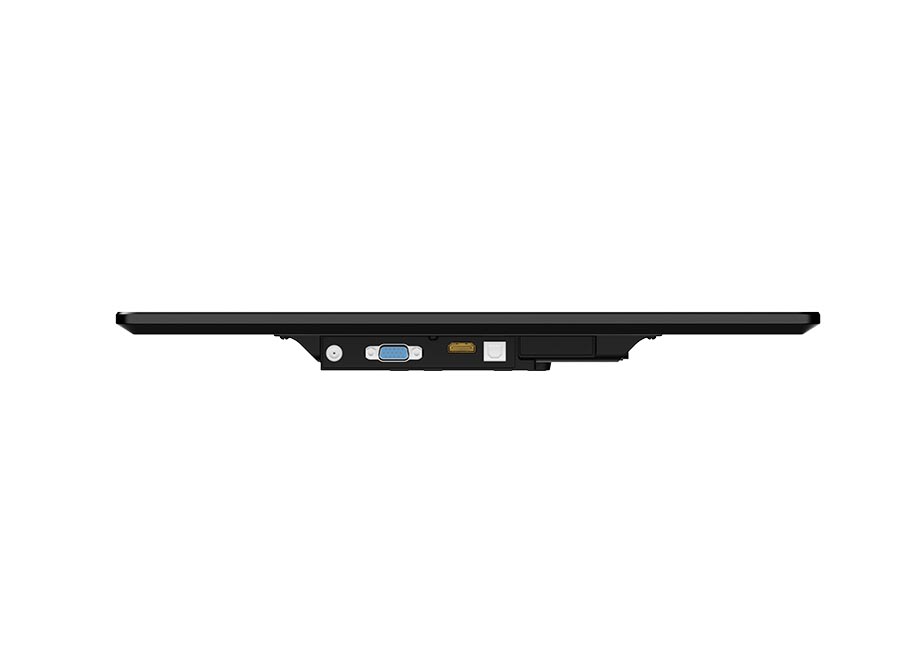

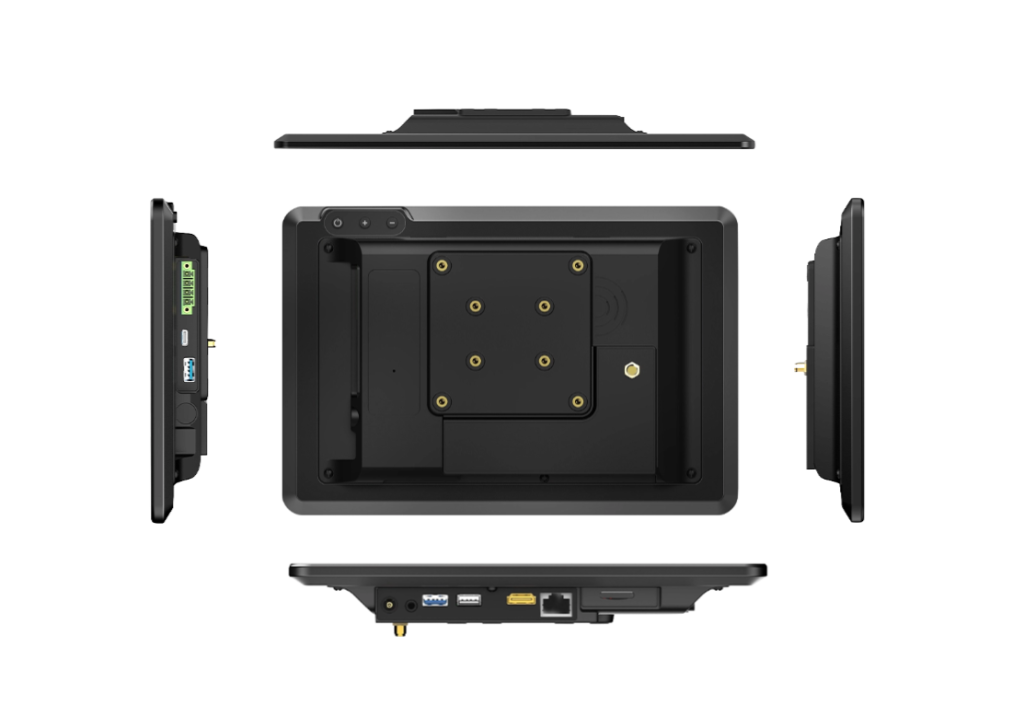

Equipped with HDMI, USB-B, RS485, and DC jack, the Display Series connects easily to external PCs, embedded controllers, and industrial peripherals. This plug-and-play design simplifies integration without the need for onboard computing.
Rugstorm offers rapid and affordable customization services, tailoring display configurations to unique workflow requirements. This ensures customers receive solutions optimized for their environment without unnecessary cost or delay.
RUGSTORM brings more than 15 years of ODM expertise together with its own factory and laboratory to deliver customization at speed and scale.
With full control over design, engineering, manufacturing, and after‑sales support, RUGSTORM turns complex requirements into fast, cost‑effective solutions.
Whether it’s custom I/O, tailored firmware, mechanical tweaks, or branded finishes, every modification is precise, reliable, and built to fit your workflow perfectly.
| Category | Feature | D150 | D215 | D238 |
|---|---|---|---|---|
| Display | Screen Size | 15.6-inch | 21.5-inch | 23.8-inch |
| Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | |
| Brightness | 300 nits (Typ) | 300 nits (Typ) | 350 nits (Typ) | |
| Viewing Angle | 170° | 170° | 178° | |
| Contrast Ratio | 1000:1 | 1200:1 | 1000:1 | |
| Display Colors | 16.7M | 16.7M | 16.7M | |
| Response Time | 30ms (Typ) | 30ms (Typ) | 30ms (Typ) | |
| Active Area | 344.16 x 193.59mm | 476.64 x 268.11mm | 522 x 294mm | |
| Minimum Backlight Life (hrs) | 20,000 | 20,000 | 30,000 | |
| Touch | Touchscreen Type | 5-point capacitive | 5-point capacitive | 10-point capacitive |
| Surface Hardness | 6H | 6H | 6H | |
| Interface | I/O Ports | 1 x DC Jack | 1 x DC Jack | 1 x DC Jack |
| 1 x HDMI | 1 x HDMI | 1 x HDMI | ||
| 1 x USB-B | 1 x USB-B | 1 x USB-B | ||
| 1 x RS485 | 1 x RS485 | 1 x RS485 | ||
| Environment | Operating Temp. | -10°C to 55°C | -10°C to 55°C | 0°C to 40°C |
| Storage Temp. | -20°C to 60°C | -20°C to 60°C | -10°C to 50°C | |
| Operating Humidity | 0%~95% (non-condensing) | 0%~95% (non-condensing) | 5%~95% (non-condensing) | |
| Front Protection | IP54 / IP65 | IP54 / IP65 | IP54 / IP65 | |
| Physical | Dimensions (mm) | 384.0 x 244.0 x 32.5 | 532.0 x 325.0 x 39.0 | 572.3 x 334.2 x 47.7 |
| Net Weight | 1.66 kg | 4.5 kg | 5.8 kg | |
| Power/Other | Input Voltage | 12V | 12V | 12V |
| Compliance | Rugstorm holds a wide range of certifications across multiple countries. For more information, please contact us at [email protected] | |||
From the first sketch to the final assembly, we own the process. Our end-to-end factory operations mean we don’t just meet your specs—we perfect them, whether it’s a standard tweak or a full-scale custom build.
With hubs in Japan, China, and the Netherlands, we provide a seamless support bridge between Asia and Europe. You get the power of a global network with the responsiveness of a local partner.
Since 2019, we’ve operated in “no-fail” sectors like public safety and critical infrastructure. We don’t just build products, we build reliability that meets the world’s toughest standards.
| Category | Feature | D150 | D215 | D238 | ||
| Display | Screen Size | 15.6-inch | 21.5-inch | 23.8-inch | ||
| Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | |||
| Brightness | 300 nits (Typ) | 300 nits (Typ) | 350 nits (Typ) | |||
| Viewing Angle | 170° | 170° | 178° | |||
| Contrast Ratio | 1000:1 | 1200:1 | 1000:1 | |||
| Display Colors | 16.7M | 16.7M | 16.7M | |||
| Response Time | 30ms (Typ) | 30ms (Typ) | 30ms (Typ) | |||
| Active Area | 344.16 x 193.59mm | 476.64 x 268.11mm | 522 x 294mm | |||
| Minimum Backlight Life (hrs) | 20,000 | 20,000 | 30,000 | |||
| Touch | Touchscreen Type | 5-point capacitive | 5-point capacitive | 10-point capacitive | ||
| Surface Hardness | 6H | 6H | 6H | |||
| Interface | I/O Ports | 1 x DC Jack | 1 x DC Jack | 1 x DC Jack | ||
| 1 x HDMI | 1 x HDMI | 1 x HDMI | ||||
| 1 x USB-B | 1 x USB-B | 1 x USB-B | ||||
| 1 x RS485 | 1 x RS485 | 1 x RS485 | ||||
| Environment | Operating Temp. | -10°C to 55°C | -10°C to 55°C | 0°C to 40°C | ||
| Storage Temp. | -20°C to 60°C | -20°C to 60°C | -10°C to 50°C | |||
| Operating Humidity | 0%~95% (non-condensing) | 0%~95% (non-condensing) | 5%~95% (non-condensing) | |||
| Front Protection | IP54 / IP65 | IP54 / IP65 | IP54 / IP65 | |||
| Physical | Dimensions (mm) | 384.0 x 244.0 x 32.5 | 532.0 x 325.0 x 39.0 | 572.3 x 334.2 x 47.7 | ||
| Net Weight | 1.66 kg | 4.5 kg | 5.8 kg | |||
| Power/Other | Input Voltage | 12V | 12V | 12V | ||
| Compliance | Rugstorm holds a wide range of certifications across multiple countries. For more information, please contact us at [email protected] |
|||||
