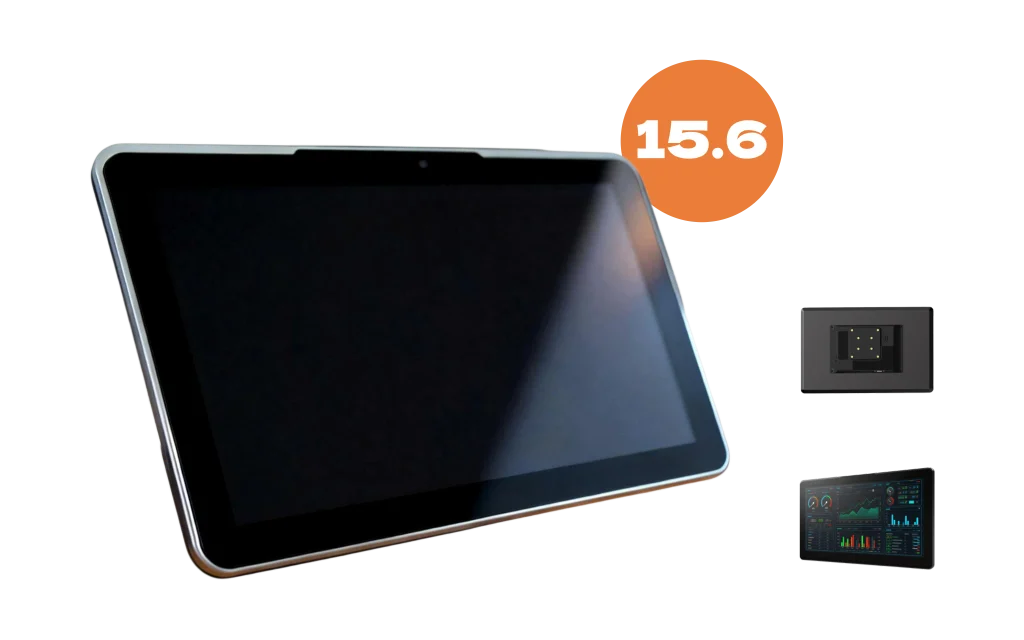

Rugstorm D150 is designed to deliver a clear, and immersive viewing experience for a variety of applications. It is an excellent choice for those seeking a high-quality, reliable, and visually appealing Industrial display. Its combination of performance, durability, and sleek design makes it a valuable addition to any workspace.
The D150 is encased in a aluminium alloy frame, achieving both excellent durability and a modern aesthetic. Its slim design allows it to be easily and seamlessly integrated into various workspaces such as retail stores, offices, and home offices.
The D150 adapts seamlessly to various environments, offering customizable IP ratings, brightness, connectivity options and I/O ports. Moreover, our comprehensive one-stop service, spanning R&D to production, ensures your requirements are always fully met.
You can rely on us for product supply for 5 years or more. And if you’re in Japan, our local service team is ready to come to your at any time. We also have a support center in Japan with our expert team so your problem can be solved promptly.
| Model 型番 |
D150 | D215 | D238 | |
| Display ディスプレイ |
Size サイズ |
15.6 inch | 21.5 inch | 23.8 inch |
| Resolution 解像度 |
1920×1080 | 1920×1080 | 1920×1080 | |
| Viewing Angle 視角 |
170° | 170° | 178° | |
| Active Area アクティブエリア |
344.16 x 193.59mm | 476.64 x 268.11mm | 522 x 294mm | |
| Brightness(Type) 輝度 |
300 nits | 300 nits | 350 nits | |
| Display Color 色深度 |
16.7M | 16.7M | 16.7M | |
| Contrast Ratio コントラスト比 |
1000:1 | 1000:1 | 1000:1 | |
| Response Time 応答速度 |
30ms(Typ) | 30ms(Typ) | 30ms(Typ) | |
| Backlight Life(hours) バックライトの寿命 |
20,000hrs(Min) | 20,000hrs(Min) | 30,000hrs(Min) | |
| Touch Screen タッチスクリーン |
Touchscreen Type タッチスクリーン |
5 point capacitive touch | 5 point capacitive touch | 10 point capacitive touch |
| Surface Hardness 表面硬度 |
6H | 6H | 6H | |
| Environment 環境 |
Operating Temperature 使用周囲温度 |
-10~+55℃ | -10~+55℃ | 0 ~ 40℃ |
| Storage Temperature 保存周囲温度 |
-20~+60℃ | -20~+60℃ | -10 ~ 50℃ | |
| Operating Humidity 湿度 |
0%~95% (Non Condensing) | 0%~95% (Non Condensing) | 5%~95% (Non Condensing) | |
| Front Panel Protection フロントパネル保護 |
IP54, IP65(optional) | IP54, IP65(optional) | IP54, IP65(optional) | |
| Interface インターフェース |
12V DC input Type-A, With Brightness Control Type-B, Touch panel RS485 |
12V DC input Type-A, With Brightness Control Type-B, Touch panel RS485 |
DC Jack HDMI VGA USB-A Audio |
|
| Physical 型式 |
Dimensions 外形寸法 |
384 x 244 x 32.5mm | 532 x 325 x 39mm | 572.28 x 334.22 x 47.7mm |
| Net Weight 純量 |
1.66kg | 4.5kg | 5.8kg | |
| Gross Weight 総重量 |
2.1kg | 5.5kg | 6.3kg | |
| Power 入力電圧 |
Input Voltage 入力電圧 |
12V | 12V | 12V |
| Compliance 適合規格 |
CCC / CE / VCCI / JATE / PSE(Adapter) | CCC / CE / VCCI / JATE / PSE(Adapter) | CCC / CE / VCCI / JATE / PSE(Adapter) | |
| Packing 包装情報です |
Box Dimension 外形寸法 |
475 x 295 x 96mm | 600 x 400 x 90mm | 650 x 400x 90mm |
