F101KB

Built for Performance. Engineered for the Field

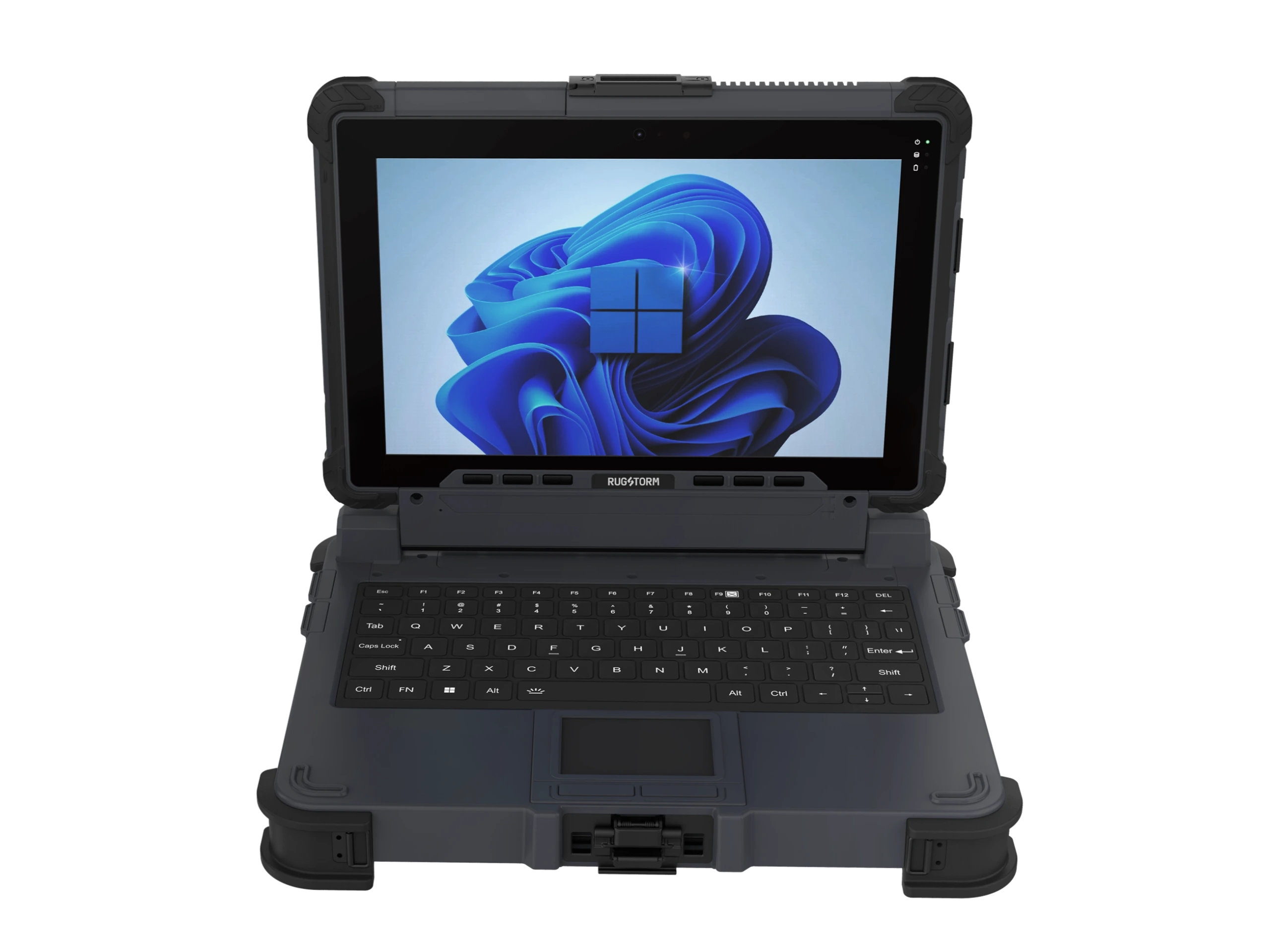

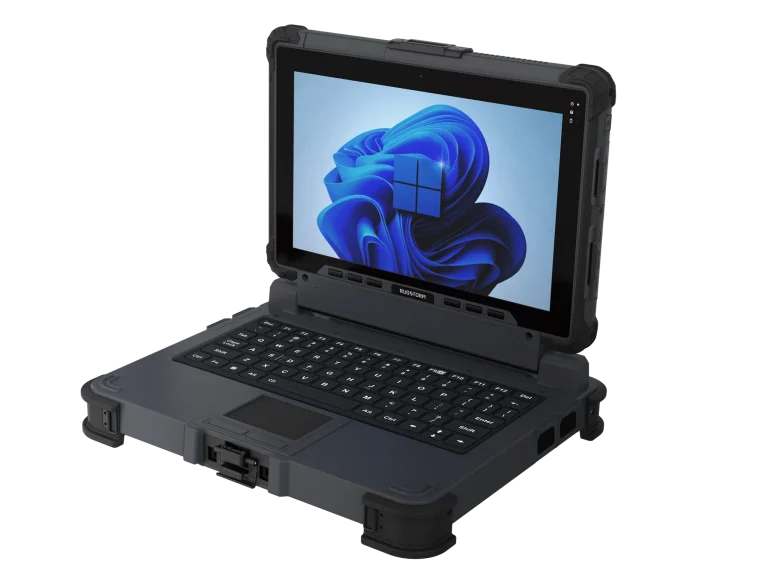

The Rugged Laptop F101KB is built to conquer the harshest environments with confidence. Engineered for durability, it meets IP65 and MIL-STD-810H standards—ensuring superior protection against water, dust, drops, and vibrations. Powered by a high-performance CPU, it handles demanding workloads with ease, while its ultra-bright, anti-glare display guarantees clear visibility even in direct sunlight. Designed for real-world conditions, the F101KB supports glove and wet-touch operation, delivering dependable performance wherever your work takes you.

  • OS: Windows® 11 IoT Enterprise
  • CPU: Intel® Core™ i5-1235U
  • Display: 10.1-inch, 1920 x 1200 resolution
  • Memory: 16GB LPDDR5
  • Storage: 256GB/1TB SSD
  • Sealing: IP65 & MIL-STD-810H
  • Connectivity: Wi-Fi 6E, Bluetooth 5.3, optional 4G LTE
  • Security: TPM 2.0



Operation System
  • Windows® 11 loT Enterprise SAC 64 bit
Processor
  • Intel® Core™ i5-1235U, 3.3 GHz up to 4.4 GHz
Memory & Storage
  • 16 GB LPDDR5
  • 256GB SSD
    • Optional 1TB SSD
Display
  • 10.1″ 1920 x 1200 resolution
  • 10-point touch (support wet & glove operation modes)
  • 800 nits typical
  • Direct bonding
Sensors
  • Ambient light sensor
  • Accelerometer
Audio
  • 95db speaker (10 cm, 1 kHz)
  • Built-in microphone
Camera
  • 5 MP front camera

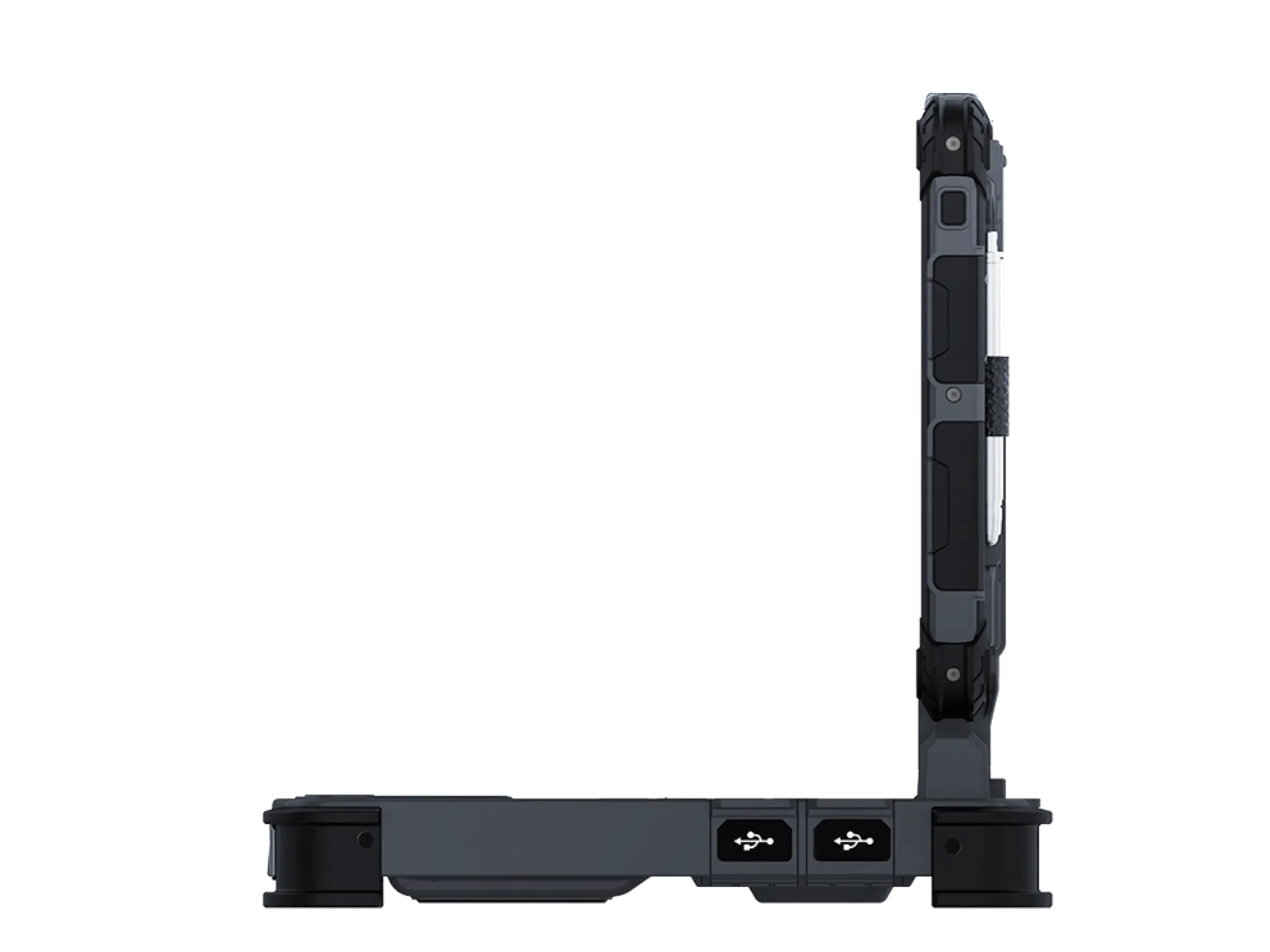

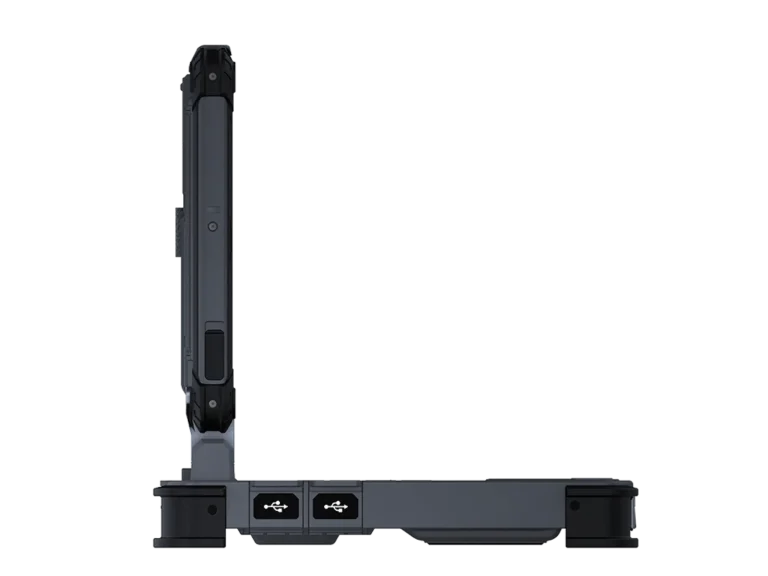

Interface
  • 2 x USB3.2 Type-A
  • 1 x HDMI 2.0 Type A
  • 1x USB3.2 Type-C
  • 1 x RJ45
  • 1 x DC Jack 19V
  • 1 x Micro SD (SDXC)
  • 4 x USB2.0 Type-A (5V 0.5A)
  • 1 x USB2.0 Type-A
  • 1 x RS232 DB*9
  • Buttons
    • 1 x Power
    • 1x Home (programmable)
    • 1 x Windows (programmable)
    • 2 x Volume +/- (programmable)
    • 2 x Screen brightness +/- (programmable)
  • Status indicators
    • 1 x Power
    • 1 x Hard disk drive
    • 1 x Battery
    • 1 x Front camera
  • Kensington lock
Dimension & Weight
  • 278mm L x 239mm W x 52mm D
  • 2.3kg

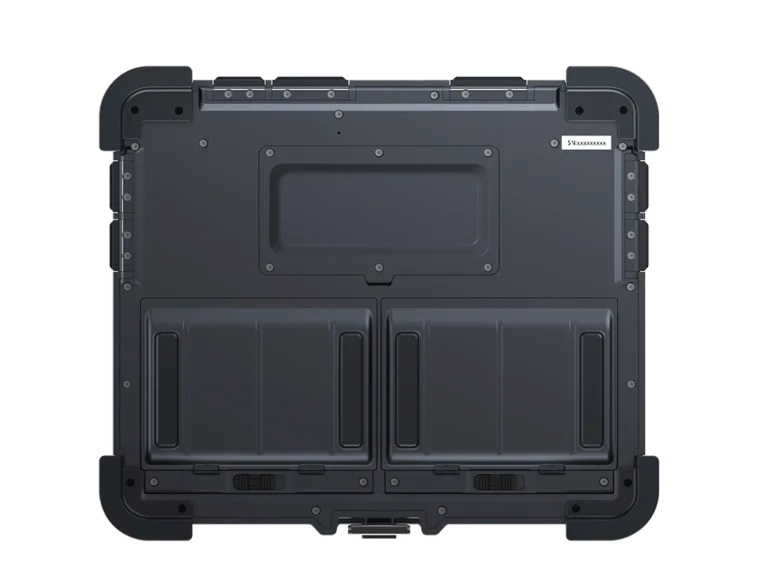

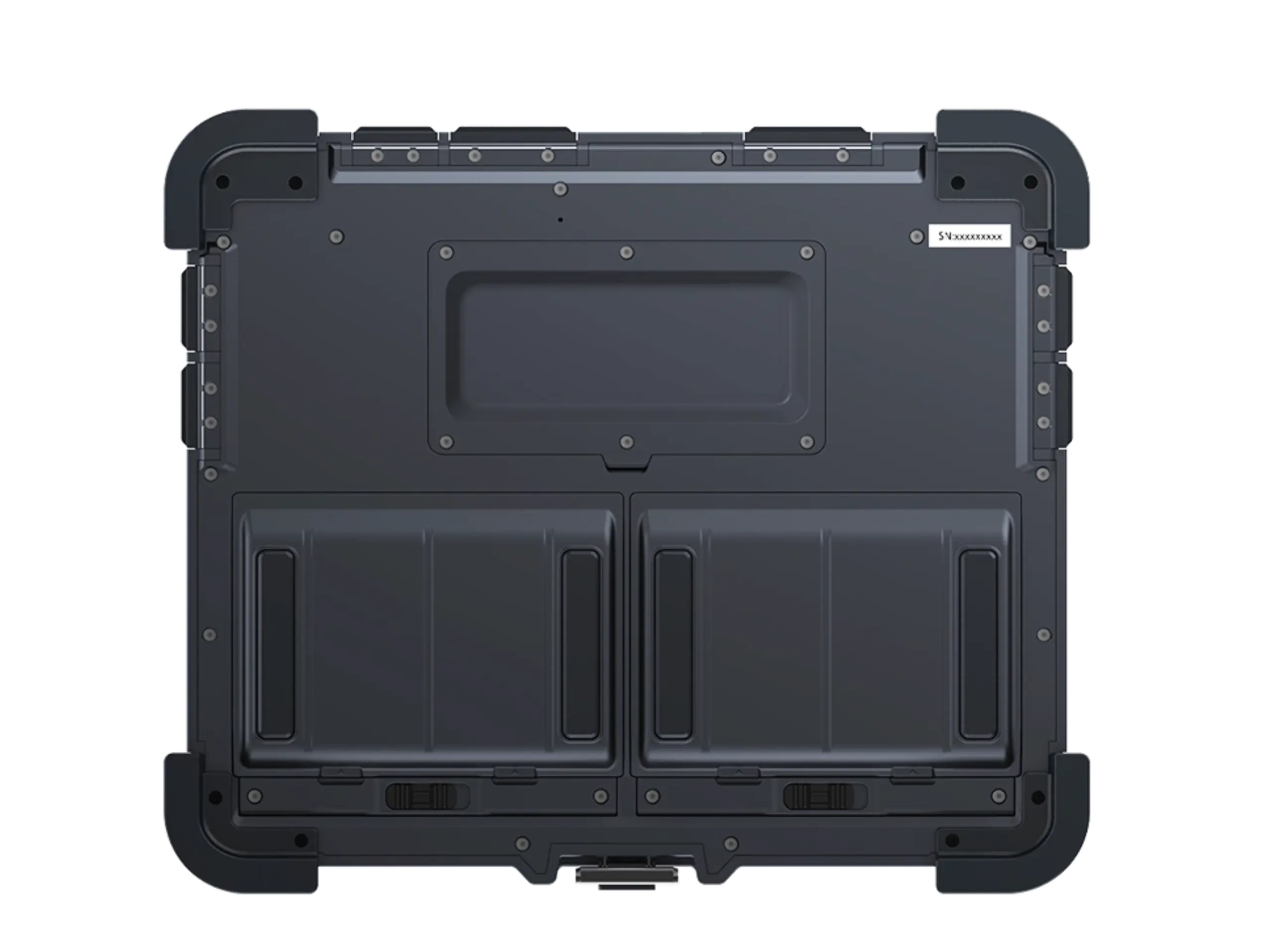

Power

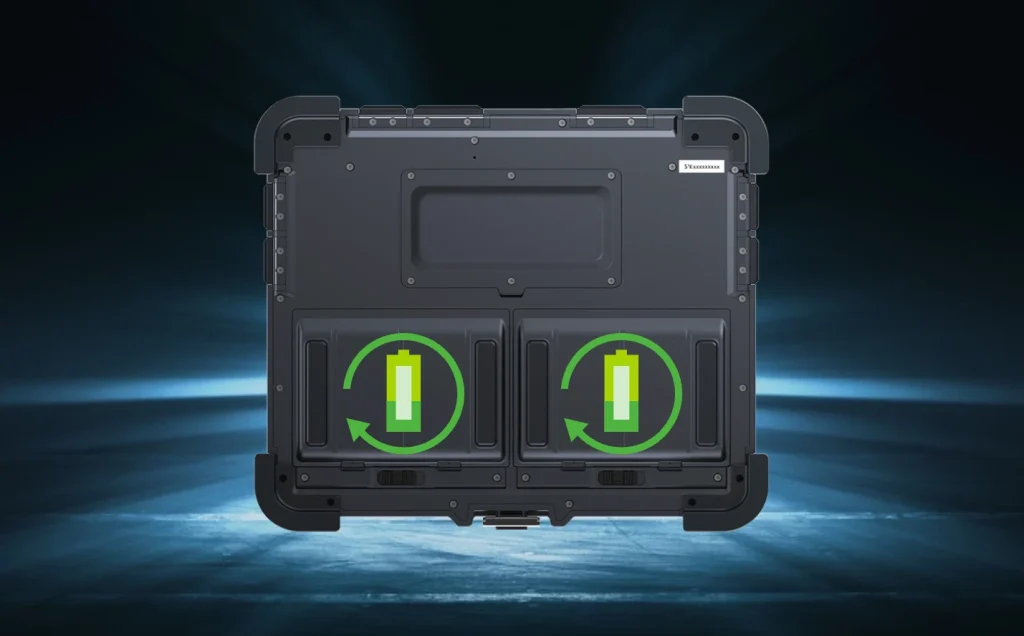

  • 11.01V, 6000mAh typical hot-swappable
  • No less than 20 hours working time
  • AC/DC adapter
    Input AC 100-240V 50/60 Hz;
    Output DC 19V, 3.42A
Wireless Connectivity
  • Wi-Fi (WLAN)
    • 802.11 a/b/g/n/ac/ax 2.4, 5, 6GHz support Wi-Fi 6E
  • Cellula (WWAN)
    • 4G LTE Global version (optional)
  •  BT (WPAN)
    •  v5.3

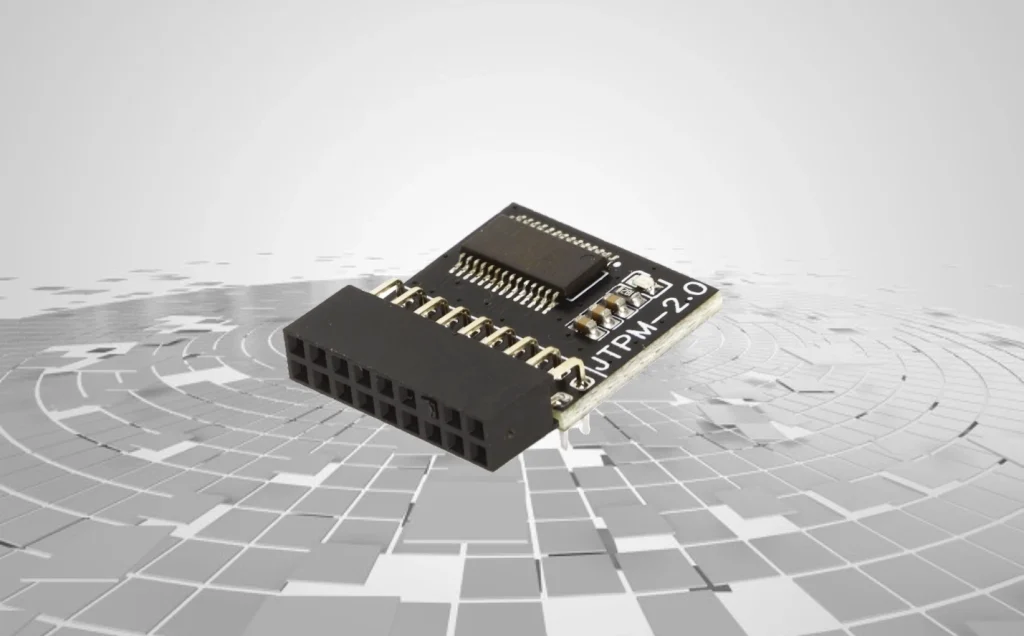

Security
  • TPM v2.0
Environment & Ruggedness
  • Operating temperature
    • -20°C to 60°C/-4°F to 140°F
  •  Storage temperature
    •  -40°C to 70°C/-40°F to 158°F
  •  Humidity
    • 0% to 95% non-condensing
  • Sealing
    • IP65
  • MIL-STD-810H Method 516.8 1.2m/4’
  • Electrostatic Discharge (ESD) – 8KV contact, 12KV air
Certifications
  • FCC
  • CE, RoHS, REACH,WEEE
  • TELEC, JATE, VCCI, PSE
  • CCC
