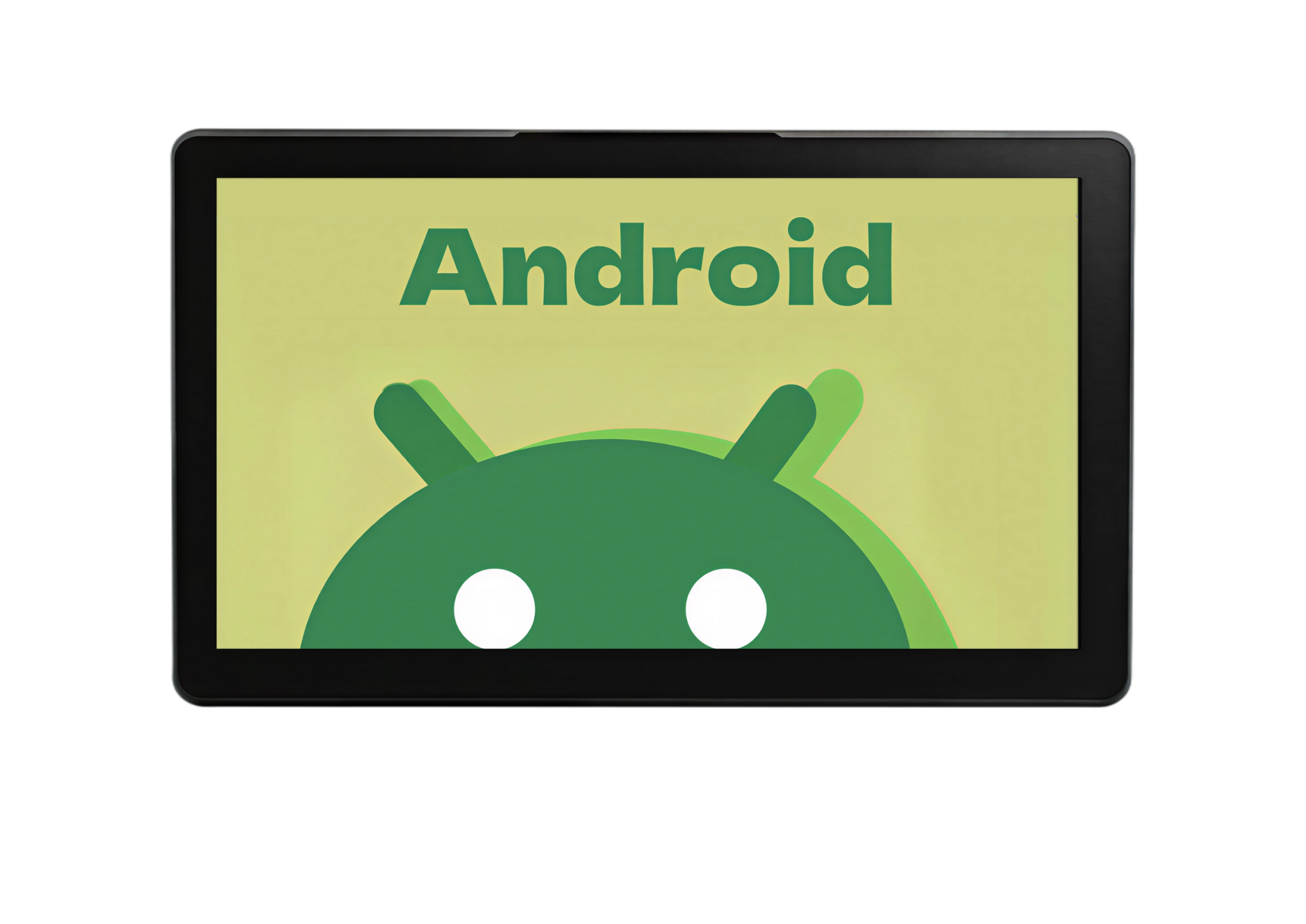

The RUGSTORM Android™ Panel PC series covers 10.1-inch, 15.6-inch and 21.5-inch models (D101A / D156A / D215A). Android™ 12 on a Rockchip® RK3568 quad-core 2.0 GHz processor, aluminium frame, optional IP54/IP65 front. Customisation is available per project.
Available in 10.1″, 15.6″, and 21.5″ models, the series is designed to adapt seamlessly from compact workstations to expansive control panels, ensuring flexibility across a wide range of industrial environments.
Built with durable aluminium-alloy frames and IP54/IP65 front sealing, these panels withstand extreme temperatures and humidity, delivering consistent reliability even in the harshest operating conditions.
Equipped with Wi-Fi, Bluetooth, 4G, and 5G, along with versatile ports such as USB, HDMI, RJ45, and RS232, the series connects effortlessly to scanners, sensors, and printers. Its fanless design and ESD protection guarantee quiet, interference-free, and dependable performance.
Powered by Android™ 12 and Rockchip RK3568 quad-core CPUs, with up to 8GB RAM and 64GB storage, the series delivers robust computing power. RUGSTORM’s fast, cost-effective customisation ensures solutions are precisely tailored to meet unique workflow requirements.
Display: 10.1-inch, 1280 x 800 resolution
OS: Android™ 12
CPU: Rockchip® RK3568, Quad-core 2.0 GHz
Memory: 4 GB LPDDR4 / 8 GB LPDDR4 (optional)
Storage: 32GB / 64GB (optional)
Luminance: 300 cd/m2
Backlight Life: 30,000 hours
Contrast Ratio: 1,000:1
I/O Interfaces:
– USB-C x 1, USB 3.0 x 1, USB 2.0 x 3
– HDMI x 1, RJ45 x 1, RS-232/485 x 1
– 3.5mm Audio x 1, 5.5mm DC_IN x 1
– Nano SIM card slot x 1
Display: 15.6-inch, 1920 x 1080 resolution
OS: Android™ 12
CPU: Rockchip® RK3568, Quad-core 2.0 GHz
Memory: 4 GB LPDDR4 / 8 GB LPDDR4 (optional)
Storage: 32GB / 64GB (optional)
Luminance: 300 cd/m2
Backlight Life: 30,000 hours
Contrast Ratio: 1,000:1
I/O Interfaces:
– USB-C x 1, USB 3.0 x 1, USB 2.0 x 3
– HDMI x 1, RJ45 x 1, RS-232/485 x 1
– 3.5mm Audio x 1, 5.5mm DC_IN x 1
– Nano SIM card slot x 1
Display: 21.5-inch, 1920 x 1080 resolution
OS: Android™ 12
CPU: Rockchip® RK3568, Quad-core 2.0 GHz
Memory: 4 GB LPDDR4 / 8 GB LPDDR4 (optional)
Storage: 32GB / 64GB (optional)
Luminance: 350 cd/m2
Backlight Life: 30,000 hours
Contrast Ratio: 1,000:1
I/O Interfaces:
– USB-C x 1, USB 3.0 x 1, USB 2.0 x 3
– HDMI x 1, RJ45 x 1, RS-232/485 x 1
– 3.5mm Audio x 1, 5.5mm DC_IN x 1
– Nano SIM card slot x 1
RUGSTORM combines its own factory and in-house laboratory with design and manufacturing capability to deliver fast, scalable, and highly customised solutions.
With complete control over design, engineering, manufacturing, and after-sales support, RUGSTORM transforms complex requirements into streamlined, cost-effective products.
From custom I/O and tailored firmware to mechanical adjustments and branded finishes, every modification is precise, reliable, and purpose-built to fit seamlessly into your workflow.
RUGSTORM Android Panel PCs can serve as touchscreen human-machine interfaces for production monitoring, equipment status visualisation, and operator interaction. Powered by Android 12 and the Rockchip RK3568 processor, the series offers Ethernet, USB, and RS-232/485 connectivity for integration with compatible industrial controllers and automation systems. Display sizes from 10.1″ to 21.5″ accommodate different workstation requirements.
Suggested model: D156A / D215A
RUGSTORM Android Panel PCs provide interactive touchscreen interfaces for vending machines, supporting product selection, ordering, and transaction displays through compatible Android applications. Available in 10.1″, 15.6″, and 21.5″ sizes, the series offers flexible integration into vending cabinets. USB, Ethernet, and RS-232/485 interfaces support connections to compatible payment peripherals and machine controllers.
Suggested model: D101A / D156A
Designed for interactive self-service applications, RUGSTORM Android Panel PCs can be integrated into ordering kiosks, check-in terminals, and information stations. Android 12 supports customised user interfaces, while capacitive multi-touch displays provide intuitive interaction. Multiple screen sizes and configurable I/O options help kiosk manufacturers adapt the hardware to different enclosure designs and peripheral requirements.
Suggested model: D101A / D156A / D215A
| Category | Item | D101A | D156A | D215A |
|---|---|---|---|---|
| Physical | Screen Size | 10.1-inch | 15.6-inch | 21.5-inch |
| Dimensions (mm) | 252(L) 171(W) 31.5(D) | 384.2(L) 244(W) 32.5(D) | 546(L) 342(W) 39(D) | |
| Weight | 0.85kg | 1.75kg | 4.5kg | |
| Display | Resolution | 1280 x 800 | 1920 x 1080 | 1920 x 1080 |
| Brightness (Type) | 300 cd/m² | 300 cd/m² | 350 cd/m² | |
| Contrast Ratio | 1000:1 | 1000:1 | 1000:1 | |
| Display Colour | 16.7M | 16.7M | 16.7M | |
| Viewing Angle | 170° | 170° | 178° | |
| Touch Type (Type) | 5-point capacitive | 5-point capacitive | 10-point capacitive | |
| Response Time | 30ms | 30ms | 30ms | |
| Backlight Life (hrs) | 30000 | 30000 | 30000 | |
| System | OS | Android™ 12 | Android™ 12 | Android™ 12 |
| CPU | Rockchip® RK3568 | Rockchip® RK3568 | Rockchip® RK3568 | |
| Quad-core 2.0GHz (Max) | Quad-core 2.0GHz (Max) | Quad-core 2.0GHz (Max) | ||
| Memory (RAM) | 4GB LPDDR4 / 8GB LPDDR4 | 4GB LPDDR4 / 8GB LPDDR4 | 4GB LPDDR4 / 8GB LPDDR4 | |
| Storage (Flash) | 32GB / 64GB | 32GB / 64GB | 32GB / 64GB | |
| Interface | I/O Ports | USB-C x 1 | USB-C x 1 | USB-C x 1 |
| USB 3.0 x 1 | USB 3.0 x 1 | USB 3.0 x 1 | ||
| USB 2.0 x 3 | USB 2.0 x 3 | USB 2.0 x 3 | ||
| HDMI x 1 | HDMI x 1 | HDMI x 1 | ||
| LAN x 1 | LAN x 1 | LAN x 1 | ||
| 3.5mm Audio x 1 | 3.5mm Audio x 1 | 3.5mm Audio x 1 | ||
| RS-232/485 x 1 | RS-232/485 x 1 | RS-232/485 x 1 | ||
| 5MP Front Camera x 1 | ||||
| Expansion | Micro SD (supports up to 1TB) | Micro SD (supports up to 1TB) | Micro SD (supports up to 1TB) | |
| Nano-SIM | Nano-SIM | Nano-SIM | ||
| Wireless | Network | Wi-Fi 2.4GHz & 5GHz | Wi-Fi 2.4GHz & 5GHz | Wi-Fi 2.4GHz & 5GHz |
| 4G LTE / 5G (optional) | 4G LTE / 5G (optional) | 4G LTE / 5G (optional) | ||
| Bluetooth | v5.4 | v5.4 | v5.4 | |
| NFC | NFC (optional) | |||
| Power | Input Voltage | 12V | 12V | 12V |
| Environment | Operating Temp | -10°C~55°C | -10°C~55°C | -10°C~55°C |
| Storage Temp | -20°C~60°C | -20°C~60°C | -20°C~60°C | |
| Operating Humidity | 5%-95% (non-condensing) | 5%-95% (non-condensing) | 5%-95% (non-condensing) | |
| Front Panel Sealing | IP54 / IP65 (optional) | IP54 / IP65 (optional) | IP54 / IP65 (optional) | |
| Surface Hardness | 6H | 6H | 6H | |
| Compliance | Compliance | RUGSTORM holds a wide range of certifications across multiple countries. | ||
| For more information, please contact us at [email protected] | ||||
From the first sketch to the final assembly, we own the process. Our end-to-end factory operations mean we don’t just meet your specs—we perfect them, whether it’s a standard tweak or a full-scale custom build.
With offices in Japan, China, and the Netherlands, we provide a support bridge between Asia and Europe. You get the power of a global network with the responsiveness of a local partner.
The brand was established in late 2018. We operate in sectors such as public safety and critical infrastructure. We don’t just build products, we build reliability that meets the world’s toughest standards.
